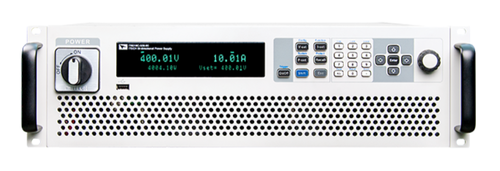

ITECH IT6012C-500-80 Regenerative Bidirectional Programmable DC Power Supply (12 kW, 500 V, 80 A)
DC Output and Load Ratings:
- Maximum 12 kW
- Maximum Output voltage: 0-500 V
- Current: 0-80 A
DC Output Modes:
- CV, CC, I-V simulation, adjustable output impedance
Feature set:
- Bidirectional energy flow between the DUT and the AC grid
- Source and Sink function
- Built-in arbitrary waveform generator
- Adjustable output impedance
- Support solar panel I-V curves simulation
- Stand-alone power up to 120 kW, expandable in parallel up to 1152 kW
- High power density design provides 18 kW in 3U space
- High resolution, high precision and high stability
- Built-in voltage curves comply with DIN 40839, ISO-16750-2/ISO21848 automotive standards
- Parallel connection
- Power failure protection
- OCP/under current protection /OVP/OTP/OPP/UVP, grid fault protection and fault storage
Connectivity:
- Built-in USB/CAN/LAN/digital IO interface
- Optional GPIB, Analog and RS232
Documents and Software Solutions:
The bi-directional programmable DC power supply of IT6000C series combines two functions in one: source and sink with energy regeneration.
Based on these functions, IT6000C offers the functionality of two-quadrant operation.
The regenerative capability enables the energy consumed to be fed back to the grid cleanly, saving costs from energy consumption and cooling, while not interfering with the grid.
IT6000C series provides 5 voltage grades with a maximum output voltage of 2250 V. It supports master-slave paralleling with averaging current distribution, maximum output power up to 1.152 MW.
Built-in waveform generator supports generating arbitrary waveforms, and import LIST files for waveforms via front panel USB port. IT6000C is the combination of high reliability, high efficient setting, safe and multiple measurement functions.
The bi-directional programmable DC power supply of IT6000C series combines two functions in one: source and sink with energy regeneration.
Based on these functions, IT6000C offers the functionality of two-quadrant operation.
The regenerative capability enables the energy consumed to be fed back to the grid cleanly, saving costs from energy consumption and cooling, while not interfering with the grid.
IT6000C series provides 5 voltage grades with a maximum output voltage of 2250 V. It supports master-slave paralleling with averaging current distribution, maximum output power up to 1.152 MW.
Built-in waveform generator supports generating arbitrary waveforms, and import LIST files for waveforms via front panel USB port. IT6000C is the combination of high reliability, high efficient setting, safe and multiple measurement functions.
