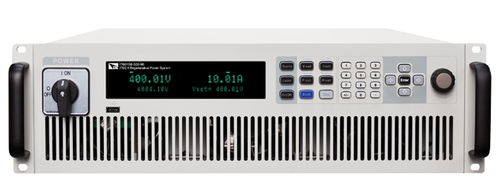

ITECH IT6012B-500-80 Regenerative Power System (12 kW, 500 V, 60 A)
DC Output and Load Ratings:
- Maximum 12 kW
- Maximum Output voltage: 0-500 V
- Current: 0-800 A
DC Output Modes:
- CV, CC, Battery Simulation, I-V simulation, adjustable output impedance
DC Load Modes:
- CV, CC, CR, CP, Battery Test
Feature set:
- Bidirectional enegy flow between the DUT and the AC grid
- Source and Sink function
- Built-in arbitrary waveform generator
- Battery Simulation
- Adjustable output impedance
- Support solar panel I-V curves simulation
- Stand-alone power up to 120 kW, expandable in parallel up to 980kW
- High power density design provides 15kW in 3U space
- High resolution, high precision and high stability
- Built-in voltage curves comply with DIN 40839, ISO-16750-2/ISO21848 automotive standards
- Parallel connection
- Power failure protection
- OCP/under current protection /OVP/OTP/OPP/UVP, grid fault protection and fault storage
Connectivity:
- Built-in USB/CAN/LAN/digital IO interface
- Optional GPIB, Analog and RS232
Documents and Software Solutions:
IT6000B integrates bidirectional power supply and regenerative electronic load into one 3U unit.
Exceptional easy-of use. Only one button is needed to switch between the bidirectional power supply and the regenerative electronic load. It can be used not only as a powerful stand-alone bidirectional power supply; but also as an independent regenerative electronic load, to absorb the consumed energy and feedback cleanly to the grid.
IT6000B offers standard two-quadrants functionality.
IT6000B provides 7 voltage ranges, up to 2250 V, supports master-slave parallel with even current distribution up to 1152 kW.
Built-in waveformgenerator supports generating arbitrary waveforms, and imports LIST files for waveforms via USB interface. IT6000B is the combination
of reliability, high efficient testing, safe and multiple measurement functions.
IT6000B is a family of bi-directional, regenerative power system with excellent performance, extensively used in aspects of high power battery,
automotive electronics, green energy, high speed testing etc.
- IT6000B can accurately simulate the I-V curve from a solar panel
- IT6000B battery simulation feature simulates the battery supply power to the inverter
- IT7600 and IT8600 simulate the electric AC supply input
- The IT600B with an IT7600 AC source can test three input modes of inverters: Battery input, AC Input and PV input
- The function of IT6000B single feedback load can also be used for battery discharge test to characterize battery performance
IT6000B integrates bidirectional power supply and regenerative electronic load into one 3U unit.
Exceptional easy-of use. Only one button is needed to switch between the bidirectional power supply and the regenerative electronic load. It can be used not only as a powerful stand-alone bidirectional power supply; but also as an independent regenerative electronic load, to absorb the consumed energy and feedback cleanly to the grid.
IT6000B offers standard two-quadrants functionality.
IT6000B provides 7 voltage ranges, up to 2250 V, supports master-slave parallel with even current distribution up to 1152 kW.
Built-in waveformgenerator supports generating arbitrary waveforms, and imports LIST files for waveforms via USB interface. IT6000B is the combination
of reliability, high efficient testing, safe and multiple measurement functions.
IT6000B is a family of bi-directional, regenerative power system with excellent performance, extensively used in aspects of high power battery,
automotive electronics, green energy, high speed testing etc.
- IT6000B can accurately simulate the I-V curve from a solar panel
- IT6000B battery simulation feature simulates the battery supply power to the inverter
- IT7600 and IT8600 simulate the electric AC supply input
- The IT600B with an IT7600 AC source can test three input modes of inverters: Battery input, AC Input and PV input
- The function of IT6000B single feedback load can also be used for battery discharge test to characterize battery performance
