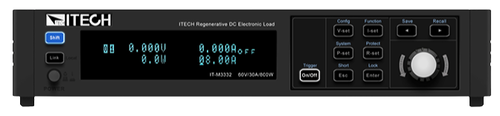

ITECH IT-M3332 Electronic Regenerative DC Load (800 W, 60 V, 30 A)
DC Load Ratings:
- Maximum 800 W
- Maximum Output voltage: 0-60 V
- Current: 0-30 A
DC Load Modes:
- CC/CV/CP/CR/CV+CC/CC+CR/CV+CR/CV+CC+CP+CR
Feature set:
- 1U Half-rack, high power density
- High efficient power regeneration
- Independent control of multi-channels with functions of synchronization and proportional tracking
- Up to 16 units can be paralleled connected
- Adjustable current rise/fall time
- List programming
- High-speed measurement, keep 10 times / s update rate even connecting 16 stand-alone units
- Various protection such as OCP/UCP/OVP/UVP/OPP, over heat protection, grid fault protection and fault storage, foldback,Power-off protection, sense abnormal protection
- Temperature measurement function, over temperature protection
- Automatic detection of power grid state to realize reliable grid connection
- Precharge function to prevent overshoot of DC loading current
- Anti-reverse protection function by optional IT-E118
Connectivity (Optional):
- RS232,CAN,LAN,GPIB,USB_TMC, USB_VCP, RS485 and analog interface
Documents and Software Solutions:
IT-M3300 regenerative DC electronic load can not only simulate various load characteristics, but also can feed back electrical energy to the local grid instead of heat. With high power density design, it can provide up to 800 W power absorption with tiny body of only 1U half-rack.
Its flexible modular architecture design can meet the test requirement of customers with different current and power.
At the same time, it has high-precision output and measurement, and has made a number of safety designs for the test. It is suitable for test applications such as various types of battery discharge, multi-channel power supply, and semiconductor aging.
IT-M3300 series is provided with independent multi-channel design.The channel sequence will be displayed when it combines to be a multi-channel electronic load system. The user can control each unit independently by GUI software when connecting the communication interface of one unit with PC. Each channel can be operated separately.
IT-M3300 series supports maximum 16*16 channels. One 37U rack contains 64 channels. The user may test DUT with different power ranges
by parallel connection, making tests more flexible and device usage more efficient.
IT-M3300 regenerative DC electronic load can not only simulate various load characteristics, but also can feed back electrical energy to the local grid instead of heat. With high power density design, it can provide up to 800 W power absorption with tiny body of only 1U half-rack.
Its flexible modular architecture design can meet the test requirement of customers with different current and power.
At the same time, it has high-precision output and measurement, and has made a number of safety designs for the test. It is suitable for test applications such as various types of battery discharge, multi-channel power supply, and semiconductor aging.
IT-M3300 series is provided with independent multi-channel design.The channel sequence will be displayed when it combines to be a multi-channel electronic load system. The user can control each unit independently by GUI software when connecting the communication interface of one unit with PC. Each channel can be operated separately.
IT-M3300 series supports maximum 16*16 channels. One 37U rack contains 64 channels. The user may test DUT with different power ranges
by parallel connection, making tests more flexible and device usage more efficient.
