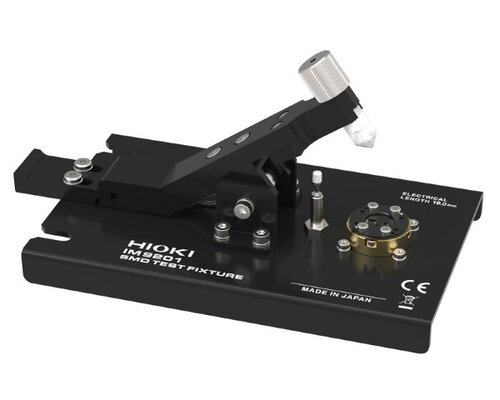

Hioki-IM9201 SMD TEST FIXTURE
3GHz High Frequency Test Fixture for 6 Different SMD Sizes
Key Features and Functions
- SMD TEST FIXTURE exclusively for the IM7580 series
- 2 device guides let you measure 6 different SMD sizes
- Definitive 3GHz high frequency analysis made easy
- Supports SMD sizes (EIA) 0201, 0402, 0603, 0805, 1206, and 1210
Documents and Software:
Hioki LCR Meters and Impedance Analyzers range from 1mHz to 3GHz devices to suit a wide range of applications in the testing of electronic components. The IM9201 is a high frequency SMD test fixture for the IM7580 series impedance analyzers that delivers ultimate flexibility by supporting 6 different SMD package sizes.
The Test Fixture Stand IM9200, the Adapter IM9906, and the Calibration Kit IM9905 (sold separately) are required when using the Test Fixture IM9201 with the Hioki IM7580 series.
Basic specifications
- Frequency range: DC to 3 GHz
- Dimensions of?measurable DUT: 0201, 0402, 0603, 0805, 1206, 1210 (EIA)
- Electrode structure: 2-terminal connection to bottom electrodes
- Maximum voltage: ±42 Vpeak (AC+DC)
- Additional error: Impedance:
- ±Ze [%]
- Phase: θe = ±0.58 × Ze [° ]
- Ze = Ae + (Zse / Zx + Yoe × Zx) × 100
- Zx: Impedance measurement value [Ω]
- Ae: 4 × f² [%]
- Zse: (100 + 500 × f) / 1000 [Ω]
- Yoe: (10 + 100 × f) / 1000000 [S]
- f [GHz]
- Supported units: IM7580, IM7580A, IM7581, IM7583, IM7585, IM7587
- Accessories: Short plate (5 types), GND plate (2 types), Device guide (2 types), Hexagon socket head bolts ×8, Tip pin (2 types), Knob ×1, Brush for cleaning ×1, Hex driver ×1, Carrying case ×1, Instruction Manual ×1
Hioki LCR Meters and Impedance Analyzers range from 1mHz to 3GHz devices to suit a wide range of applications in the testing of electronic components. The IM9201 is a high frequency SMD test fixture for the IM7580 series impedance analyzers that delivers ultimate flexibility by supporting 6 different SMD package sizes.
The Test Fixture Stand IM9200, the Adapter IM9906, and the Calibration Kit IM9905 (sold separately) are required when using the Test Fixture IM9201 with the Hioki IM7580 series.
