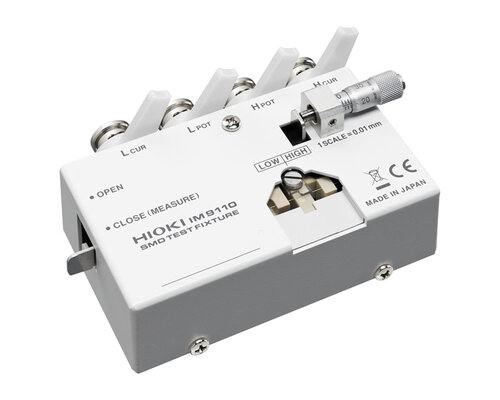

Hioki-IM9110 SMD TEST FIXTURE
High-Precision Two-terminal Fixture for Measuring Ultra Small
Availability:
Call or email for delivery time
Hioki LCR Meters and Impedance Analyzers range from 1mHz to 3GHz devices to suit a wide range of applications in the testing of electronic components. The IM9110 is a general-purpose SMD test fixture for the IM7580 series impedance analyzers that accommodates ultra-small components and delivers repeatable results.
Basic specifications
- Connection with sample: 2-terminal connection from opposite sides
- Measurable sample sizes: 0.25 ±20% × 0.125 ±10% × 0.125 ±10% mm (EIA size category: 008004)
- Please contact Hioki for information about other sizes.
- Allowable input voltage / current: Voltage: ±42 V peak (AC + DC)
- Current: 0.15 A rms (±0.15 A DC)
- Measurement frequency range: DC to 1 MHz
- Supported units: IM3590, IM3570, IM3536, IM3533, IM3533-01, IM3523, 3511-50, 3506-10, 3532-50 (legacy product), 3522-50 (legacy product)
- Accessories: Instruction manual ×1, short compensation fixture ×3, cleaning brush ×1
