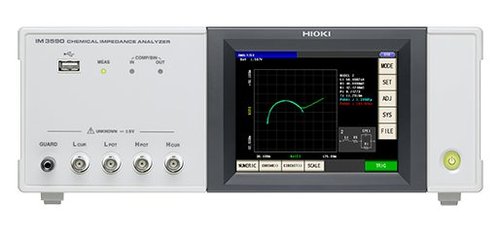

Hioki-IM3590 CHEMICAL IMPEDANCE ANALYZER
For R & D applications of Electrochemical Components and Materials, Batteries, and EDLCs
Key Features and Functions
- Broad 1 mHz to 200 kHz signal source range supports measurements of ion behavior and solution resistance
- Continuous measuring and high-speed testing of LCR and sweep measurements with a single instrument
- Measure internal impedance of batteries with no load
- Perform high-speed sweep measurements in as little as 2 ms
- Basic accuracy of ±0.05% is ideal for applications from component testing to R&D
- Measure LCR impedance for Cole-Cole plots and equivalent-circuit analyses of electro-chemical components and materials
Documents and Software:
Availability:
Call or email for delivery time
Hioki LCR Meters and Impedance Analyzers range from 1mHz to 3GHz devices to suit a wide range of applications in the testing of electronic components.. The IM3590 impedance analyzer is an advanced component tester especially suited to electrochemical impedance measurements and includes a variety of graphing functions that are needed for battery and chemical material testing.
Key Specifications:
- Measurement modes: LCR mode, Continuous measurement mode (LCR mode / Analyzer mode), Analyzer mode (Sweeps with measurement frequency and measurement level, temperature characteristics, equivalent circuit analysis)
- Measurement parameters: Z, Y, θ, Rs (ESR), Rp, Rdc (DC resistance), X, G, B, Cs, Cp, Ls, Lp,
- D (tanδ), Q, T, σ (conductivity), ε (dielectric constant)
- Measurement range: 100 mΩ to 100 MΩ, 10 ranges (All parameters are determined according to Z)
- Display range:
- Z, Y, Rs, Rp, Rdc, X, G, B, Ls, Lp, Cs, Cp, σ, ε :
- ±(0.00000 [unit] to 9.99999G [unit], Absolute value display for Z and Y only
- θ : ±(0.000° to 180.000°), D : ±(0.00000 to 9.99999)
- Q : ±(0.00 to 99999.9), Δ % : ±(0.0000% to 999.999%)
- T : -10.0°C to 99.9°C
- σ, ε :±(0.00000f [unit] to 999.999G [unit]
- Basic accuracy: Z: ±0.05% rdg. θ: ±0.03°
- Measurement frequency: 1 mHz to 200 kHz (5 digits setting resolution, minimum resolution 1 mHz)
- Measurement signal level:
- Normal mode:
- V mode/CV mode: 5 mV to 5 Vrms, 1 mVrms steps
- CC mode: 10 μA to 50 mArms, 10 μArms steps
- Low impedance high accuracy mode:
- V mode/CV mode: 5 mV to 2.5 Vrms, 1 mVrms steps
- CC mode:10 μA to 100 mArms, 10 μArms steps
- Output impedance: Normal mode: 100 Ω, Low impedance high accuracy mode: 25 Ω
- Display: 5.7-inch color TFT, display can be set to ON/OFF
- Measurement time: 2 ms (1 kHz, FAST, display OFF, representative value)
- Functions: DC bias measurement, DC resistance temperature compensation (converted reference temperature is displayed), Temperature measurement, Battery mesurement (Automatic DC biasing system), Comparator, BIN measurement (classification), Panel loading/saving, Memory function
- Interfaces:
- EXT I/O (Handler), USB communication (high-speed), USB memory
- Optional: Choose 1 from RS-232C, GP-IB, or LAN
