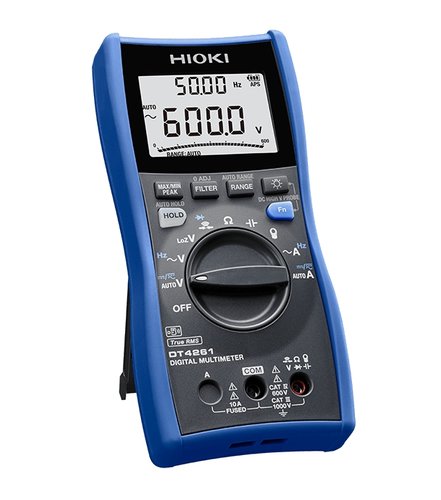

Hioki-DT4261 DIGITAL MULTIMETER

The Hioki DT4200 Digital Multimeter Series consist of a complete lineup of 9 models ranging from professional to industrial to pocket meters, delivering a super fast response rate and safety features that take electrical testing to a higher level. The DT4261, is an exceptional support tool with multifaceted functionality designed to help analyze a variety of issues and boost work efficiency.

Accuracy guaranteed: 1 year, Accuracy guarantee period after adjustment made by Hioki: 1 year

• DC Voltage range:
• 600.0 mV to 1000 V, 5 ranges, Basic accuracy: ±0.15% rdg. ±2 dgt.
• AC Voltage range:
• 6.000 V to 1000 V, 4 ranges, Frequency characteristics: 40 Hz to 1 kHz
• Basic accuracy 40 Hz - 500 Hz: ±0.9% rdg. ±3 dgt. (True RMS, crest factor 3 or less)
• DC + AC Voltage range:
• 6.000 V to 1000 V, 4 ranges, Frequency characteristics: DC, 40 Hz to 1 kHz
• Basic accuracy: DC, 40 Hz - 500 Hz: ±1.0% rdg. ±13 dgt. (True RMS, crest factor 3 or less)
• LoZ V:
• 600.0 V, 1 range, Frequency characteristics: DC, 40 Hz to 1 kHz
• Basic accuracy: DC, 40 Hz - 500 Hz: ±1.0% rdg. ±13 dgt. (True RMS, crest factor 3 or less)
• Resistance range:
• 600.0 Ω to 60.00 MΩ, 6 ranges, Basic accuracy: ±0.7% rdg. ±3 dgt.
• DC Current range
• 600.0 mA to 10.00 A, 3 ranges
• Basic accuracy: ±0.5% rdg. ±3 dgt.
• AC Current range
• 600.0 mA to 10.00 A, 3 ranges
• Basic accuracy: 40 Hz - 500 Hz: ±1.4% rdg. ±3 dgt. (True RMS, crest factor 3 or less)
• Frequency characteristics: 40 Hz to 1 kHz
• AC Current range (use with Clamp on probes)
• 10.00 A to 1000 A, 7 ranges
• Basic accuracy 40 Hz - 500 Hz:
• Add the Clamp on probe accuracy to ±0.9% rdg. ±3 dgt.
• (True RMS, crest factor 3 or less)
• Capacitance range
• 1.000 μF to 10.00 mF, 5 ranges, Basic accuracy: ±1.9% rdg. ±5 dgt.
• Continuity Check
• Continuity threshold ON : 25 Ω, Continuity threshold OFF : 245 Ω, Response time: 0.5 ms or more
• Diode test
• Open terminal voltage: 2.0 V or less, Testing current: 0.2 mA or less, Threshold of forward voltage: 0.15 V to 1.8 V
• Voltage frequency range
• 99.99 Hz to 99.99 kHz, 4 ranges (Limited by minimum sensitivity voltage)
• Basic accuracy: ±0.1% rdg. ±1 dgt.
• Current frequency range
• 99.99 Hz to 9.999 kHz, 3 ranges (Limited by minimum sensitivity current)
• Basic accuracy: ±0.1% rdg. ±1 dgt.
• Other functions
• Mis-insertion prevention shutters, fuse check function, user setting retention function, filter function, zero-adjustment, display value hold, auto hold, MAX/MIN value display, PEAK value display, auto-power save, USB communication (when optional Communication Package DT4900-01 is installed), wireless communication (when optional Wireless Adapter Z3210 is installed)
• Display
• Main and sub displays: 4-digits LCD, max. 6000 digits (excluding frequency measurement), bar-graph
• Display refresh rates
• 5 times/s (Capacitance measurement: 0.05 to 5 times/s, depending on measured value, Frequency: 1 to 2 times/s)
• Power supply
• LR6 (AA) alkaline batteries × 3, Continuous operating time: 130 hr. (without Z3210 installed), 70 hr. (with Z3210 installed and using wireless communications)
• Dimensions and mass
• 87 mm (3.43 in.) W × 185 mm (7.28 in.) H × 47 mm (1.85 in.) D, 480 g (16.9 oz.) (with test leads holder and batteries)
• Accessories
• Test Lead L9300 × 1, Instruction Manual × 1, LR6 (AA) alkaline battery × 3, Operating Precautions ×1
