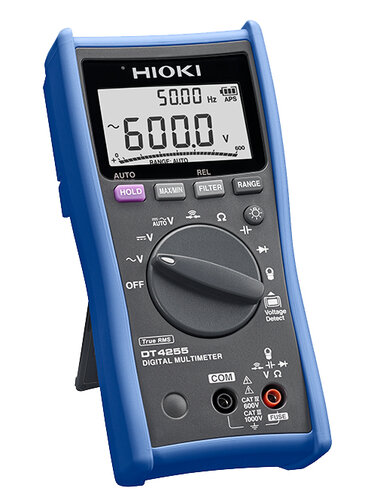

Hioki-DT4255 DIGITAL MULTIMETER
Digital Multimeter with Fuse-protected Terminals Ideal for Harsh Work Environments
Key Features and Functions
- Prevents short-circuit accidents with a fast-blow fuse and current-limiting resistor (DT4255)
- Prevents accidents with clamp-on sensor-based current measurement (DT4254, DT4255)
- Voltage detection function (DT4254, DT4255)
- Low-pass filter cuts high harmonics (when measuring inverter fundamental waveforms)
- Broad -25°C to 65°C (-13°F to 149°F) operating temperature range (DT4254, DT4255)
- Dual display lets you check voltage and frequency simultaneously
Documents and Software:
The Hioki DT4200 Digital Multimeter Series consist of a complete lineup of 9 models ranging from professional to industrial to pocket meters, delivering a super fast response rate and safety features that take electrical testing to a higher level. The DT4255 is a digital multimeter designed for maximum safety with voltage measurement terminals that are protected by a fuse.
Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year)
Regarding DMM Accuracy Due to the many ranges and functions available in a DMM, only the basic accuracy is indicated for reference. Please refer to the individual catalogs for detailed accuracy information.
- DC Voltage range:
- 600.0 mV to 1000 V
- 5 ranges, Basic accuracy: ±0.3 % rdg. ±3 dgt.
- AC Voltage range:
- 6.000 V to 1000 V, 4 ranges, Frequency characteristics: 40 Hz to 1 kHz
- Basic accuracy 40 - 500 Hz : ±0.9 % rdg. ±3 dgt. (True RMS, crest factor 3)
- AUTO AC/DCV: Yes
- Resistance range: 600.0 Ω to 60.00 MΩ, 6 ranges, Basic accuracy: ±0.7 % rdg. ±3 dgt.
- DC Current range: N/A
- From 4 to 20mA Percentage conversion display: N/A
- AC Current range (use with Clamp on probes):
- 10.00 A to 1000 A, 7 ranges, Add the Clamp on probe accuracy to basic accuracy 40 - 1 kHz : ±0.9 % rdg. ±3 dgt. (True RMS, crest factor 3)
- Temperature (thermocouples): N/A
- Voltage detection: Hi: AC40 V to 600 V, Lo: AC80 V to 600 V
- Capacitance range: 1.000 μF to 10.00 mF, 5 ranges, Basic accuracy: ±1.9 % rdg. ±5 dgt.
- Frequency range:
- 99.99 Hz to 99.99 kHz, 4 ranges (limited by the minimum detectable voltage),
- Basic accuracy: ±0.1 % rdg. ±1 dgt.
- Continuity check:
- Continuity threshold [ON]: 25 Ω or less ,
- [OFF]: 245 Ω or more,
- Response time: 0.5 ms or more
- Diode test:
- Open terminal voltage: 5.0 V or less, Testing current 0.5 mA or less,
- Threshold of forward voltage: 0.15 V to 1.5 V
- Other functions: Filter function, display value hold, auto hold, MAX/MIN/Average value display, relative value display, auto-power save, USB communication (option)
- Display: Main and Sub displays: 4-digits LCD, max. 6000 digits, bar graph
- Display refresh rates: 5 times/s (Capacitance measurement: 0.05 to 5 times/s, depending on measured value, Frequency: 1 to 2 time/s)
- Power supply: LR03 alkaline batteries ×4, Continuous use: 130 hours (backlight OFF)
- Dimensions and mass:
- 84 mm (3.31 in)W × 174 mm (6.85 in)H× 52 mm (2.05 in)D,
- 390 g (13.8 oz) (including batteries and holster)
- Accessories: Test lead L9207-10 ×1, Holster ×1, Instruction manual ×1, LR03 alkaline battery ×4
