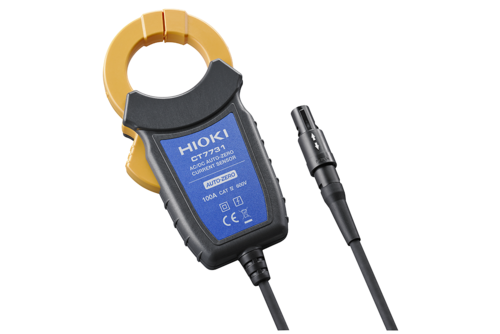

Hioki-CT7731 AC/DC AUTO-ZERO CURRENT SENSOR
Accurate, Long-term Recording and Easy Output Settings
Key Features and Functions
- Accurately measure and record even when the temperature changes
- Ideal for site inspections by using detachable Display Unit
- Four output formats to output data to loggers or other devices (via Display Unit): WAVE, RMS, PEAK, Hz
Documents and Software:
Hioki clamp on meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. The CT7731 is a 100 A AC/DC Current Sensor that pairs with the detachable Display Unit CM7290 or CM7291 for convenient field testing, while delivering an extended temperature range and auto-zero adjustment to minimize drift due to wide temperature changes that occur during long-term testing.
Further extend the functionality of this system by connecting the Display Unit with a Hioki memory recorder or logger.
Accuracy guaranteed: 3 years, Accuracy guarantee period after adjustment made by Hioki: 3 years
- Rated measurement current: 100 A AC/DC
- Max. measurement current: 100 A
- (requires derating at frequency)
- Max. allowable peak input: 150 A peak
- Bandwidth:
- DC to 5 kHz (-3dB)
- (When used in combination with CM7290 or CM7291: DC 3 Hz to 1 kHz)
- Typical phase accuracy: ±1.8 deg. (DC < f ≤ 66 Hz)
- Output rate: 1 mV/A
- Max. rated voltage to earth: AC/DC 600 V (CAT IV)
- Core diameter: φ 33 mm (1.30 in) or less
- Output connectors: HIOKI PL 14
- Operating temperature range: -25 °C to 65 °C (-13 °F to 149 °F)
- Dimensions and mass: 58 mm (2.28 in)W × 132 mm (5.20 in)H × 18mm (0.71 in)D, 250 g (8.8 oz), Cable length 2.5 m (8.20 ft)
- Accessories: None
