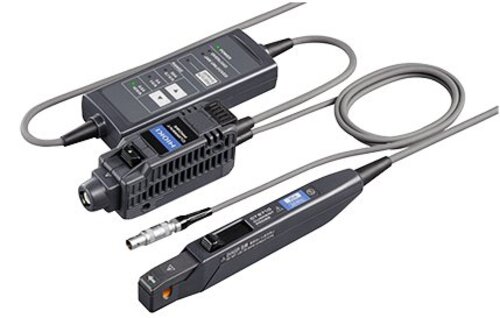

Hioki-CT6710 CURRENT PROBE, DC to 50 MHz, 30 Arms
Capture Inrush, Micro and High-Speed Currents with a Single Probe
Key Features and Functions
- 3 ranges in a single probe - 30 A, 5 A, 0.5 A. Observe a wide current range from micro currents to 30 A.
- Wide band: DC to 50 MHz (-3 dB)
- High S/N ratio and 10 times output rate: Observe waveforms at 100 μA/div at oscilloscope maximum voltage sensitivity setting of 1 mV/div
- Directly connect to an oscilloscope’s BNC input terminal *1
- Also available: CT6711 Current Probe with DC to 120 MHz bandwidth
Documents and Software:
Hioki flat bandwidth current probes are best-in-class current sensors for use with Memory HiCorders and high performance oscilloscopes. The CT6710 is a 3-range, high-sensitivity current probe that offers a wide DC to 50 MHz bandwidth and 200 μA to 30 A input, letting your capture signals across an expansive current range, from steady state to transient currents, when developing switching power supplies, inverters, and motor controllers.
Key Specifications:
- Frequency bandwidth: DC to 50 MHz (-3 dB)
- Rise time: 7.0 ns or shorter
- Delay time (Typical):
- 30 A range: 12 ns, 5 A range: 12 ns, 0.5 A range: 13 ns
(Delay time relative to rising waveform of input signal 1 ns) - Noise level: 75 μA rms max (at 0.5 A range, using 20 MHz band measuring instrument)
- Max. rated current: 30 A range:
- 30 A rms, 5 A range: 5 A rms, 0.5 A range: 0.5 A rms
(DC, and sine wave, requires derating at frequency) - Max. allowable peak current:
- 30 A range: ±50 A peak (within the input limit time 2 s)
- 5 A range: ± 7.5 A peak,
- 0.5 A range: ± 0.75 A peak (< 10 MHz), ±0.3 A peak (≥ 10 MHz)
- Amplitude accuracy:
- 30 A range: ±3.0% rdg. ±1 mV, (Typical) ±1.0% rdg. ±1 mV (≤ 10 Arms, DC, 45 to 66 Hz sine wave, within the maximum peak current of each range)
- 5 A range: ±3.0% rdg. ±1 mV, (Typical) ±1.0% rdg. ±1 mV (DC, 45 to 66 Hz sine wave, within the maximum peak current of each range)
- 0.5 A range: ±3.0% rdg. ±10 mV, (Typical) ±1.0% rdg. ±10 mV (DC, 45 to 66 Hz sine wave, within the maximum peak current of each range)
- Output rate: 30 A range: 0.1 V/A, 5 A range: 1 V/A, 0.5 A range: 10 V/A, (The output of this probe is internally terminated, so connect to voltage input equipment with high input impedance such as 1MΩ)
- Measurable conductors: φ 5 mm (0.20 in), Insulated conductor
- Power supply: Supplied from Power Supply 3269, Probe Power Unit Z5021
Hioki flat bandwidth current probes are best-in-class current sensors for use with Memory HiCorders and high performance oscilloscopes. The CT6710 is a 3-range, high-sensitivity current probe that offers a wide DC to 50 MHz bandwidth and 200 μA to 30 A input, letting your capture signals across an expansive current range, from steady state to transient currents, when developing switching power supplies, inverters, and motor controllers.
Key Specifications:
- Frequency bandwidth: DC to 50 MHz (-3 dB)
- Rise time: 7.0 ns or shorter
- Delay time (Typical):
- 30 A range: 12 ns, 5 A range: 12 ns, 0.5 A range: 13 ns
(Delay time relative to rising waveform of input signal 1 ns) - Noise level: 75 μA rms max (at 0.5 A range, using 20 MHz band measuring instrument)
- Max. rated current: 30 A range:
- 30 A rms, 5 A range: 5 A rms, 0.5 A range: 0.5 A rms
(DC, and sine wave, requires derating at frequency) - Max. allowable peak current:
- 30 A range: ±50 A peak (within the input limit time 2 s)
- 5 A range: ± 7.5 A peak,
- 0.5 A range: ± 0.75 A peak (< 10 MHz), ±0.3 A peak (≥ 10 MHz)
- Amplitude accuracy:
- 30 A range: ±3.0% rdg. ±1 mV, (Typical) ±1.0% rdg. ±1 mV (≤ 10 Arms, DC, 45 to 66 Hz sine wave, within the maximum peak current of each range)
- 5 A range: ±3.0% rdg. ±1 mV, (Typical) ±1.0% rdg. ±1 mV (DC, 45 to 66 Hz sine wave, within the maximum peak current of each range)
- 0.5 A range: ±3.0% rdg. ±10 mV, (Typical) ±1.0% rdg. ±10 mV (DC, 45 to 66 Hz sine wave, within the maximum peak current of each range)
- Output rate: 30 A range: 0.1 V/A, 5 A range: 1 V/A, 0.5 A range: 10 V/A, (The output of this probe is internally terminated, so connect to voltage input equipment with high input impedance such as 1MΩ)
- Measurable conductors: φ 5 mm (0.20 in), Insulated conductor
- Power supply: Supplied from Power Supply 3269, Probe Power Unit Z5021
