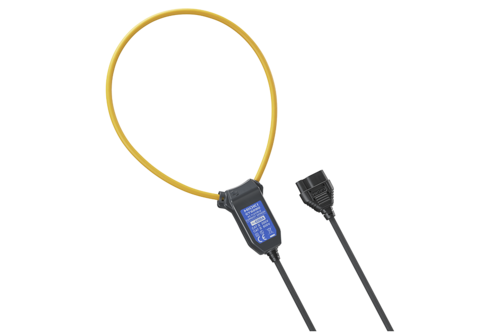

Hioki-CT6280 AC FLEXIBLE CURRENT SENSOR
For large diameter and large current measurement in combination with AC clamp meter
Key Features and Functions
- Large-diameter loop is ideal for measuring large wires and pairs of wires.
- In small spaces
- Freely bendable
Documents and Software:
Availability:
Call or email for delivery time
Accuracy guaranteed: 1 year, Accuracy guarantee period after adjustment made by Hioki: 1 year
Note: CT6280 is a flexible current sensor for measuring large currents. It is not suitable for measuring minute current such as leakage current.
- Maximum input current: 4200 A AC, continuous (50 Hz to 60 Hz)
- Core jaw dia.: φ 130 mm (5.12 in) (Cross-section diameter of sensor cable: φ 5 mm (0.20 in); Sensor-tip cap diameter: φ 7 mm (0.28 in))
- Dimensions and mass: 42 mm (1.65 in) W × 65 mm (2.56 in) H × 18 mm (0.71 in) D (excluding the flexible loop and output cable), 71 g (2.5 oz)
- Cable length: 800 mm (31.5 in)
- Accessories: Carrying Case C0205 ×1
