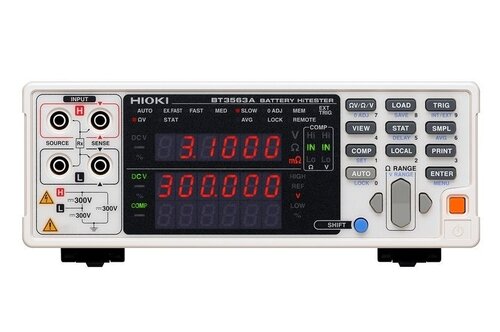

Hioki-BT3563A BATTERY HiTESTER, 300 V DC maximum
Fully Automated Production Line Testing of Large Cells for xEVs or Mid-sized Packs of up to 300 V
- Simultaneous measurement of internal resistance and open circuit voltage.
- Fully automated production line testing of large packs for xEVs or large packs of up to 300 V.
- Resistance measurement ranges: 3 mΩ/30 mΩ/300 mΩ/3 Ω/30 Ω/300 Ω/3 kΩ
- Voltage measurement ranges: 6 V/60 V/300 V
- Equipped with LAN
Documents and Software:
Hioki benchtop battery testers support simultaneous high-speed measurement of internal resistance and battery voltage for the ever-expanding production lines of increasingly larger lithium-ion low resistance batteries, and other battery packs for high voltage applications. The BT3563A battery internal resistance tester can measure the voltage and resistance of battery modules, high voltage battery packs, fuel cell stacks and other large batteries up to 300V.
Key Specifications:
- Resistance measurement ranges:
- 3 mΩ Max. display: 3.1000 mΩ, resolution: 0.1 μΩ, measurement current: 100 mA
- 30 mΩ Max. display: 31.000 mΩ, resolution: 1 μΩ, measurement current: 100 mA
- 300 mΩ Max. display: 310.00 mΩ, resolution: 10 μΩ, measurement current: 10 mA
- 3 Ω Max. display: 3.1000 Ω, resolution: 100 μΩ, measurement current: 1 mA
- 30 Ω Max. display: 31.000 Ω, resolution: 1 mΩ, measurement current: 100 μA
- 300 Ω Max. display: 310.00 Ω, resolution: 10 mΩ, measurement current: 10 μA
- 3 kΩ Max. display: 3.1000 kΩ, resolution: 100 mΩ, measurement current: 10 μA
- Basic accuracy: ±0.5% rdg ±10 dgt 3 mΩ range , ±0.5% rdg ±5 dgt 30 mΩ range or more
- Measurement frequency: 1 kHz ±0.2 Hz
- Measurement method: AC four-terminal method
- Voltage measurement ranges:
- 6 V Max. display: 6.00000 V, resolution: 10 μV
- 60 V Max. display: 60.0000 V, resolution: 100 μV
- 300 V Max. display: 300.000 V, resolution: 1 mV
- Basic accuracy: ±0.01% rdg. ±3 dgt.
- Response time: 10 ms
- Sampling period:
- Ω or V: 4 ms (EX.FAST), 12 ms (FAST), 35 ms (MEDIUM), 150 ms (SLOW)
- ΩV: 8 ms (EX.FAST), 24 ms (FAST), 70 ms (MEDIUM), 253 ms (SLOW)
- Functions:
- Contact check, Zero adjustment (±1000 counts), Pulse measurement, Comparator (Hi/ IN/ Lo), Statistical calculations (Max. 30,000), Delay, Average, Panel saving/loading, Memory storage, LabVIEW® driver
- Interfaces:
- LAN (TCP/IP, 10BASE-T/100BASE-TX)
- RS-232C (Max. 38.4 kbps, Available as printer I/F)
- EXT I/O (37-pin Handler interface)
- Analog output (DC 0 V to 3.1 V)
Hioki benchtop battery testers support simultaneous high-speed measurement of internal resistance and battery voltage for the ever-expanding production lines of increasingly larger lithium-ion low resistance batteries, and other battery packs for high voltage applications. The BT3563A battery internal resistance tester can measure the voltage and resistance of battery modules, high voltage battery packs, fuel cell stacks and other large batteries up to 300V.
Key Specifications:
- Resistance measurement ranges:
- 3 mΩ Max. display: 3.1000 mΩ, resolution: 0.1 μΩ, measurement current: 100 mA
- 30 mΩ Max. display: 31.000 mΩ, resolution: 1 μΩ, measurement current: 100 mA
- 300 mΩ Max. display: 310.00 mΩ, resolution: 10 μΩ, measurement current: 10 mA
- 3 Ω Max. display: 3.1000 Ω, resolution: 100 μΩ, measurement current: 1 mA
- 30 Ω Max. display: 31.000 Ω, resolution: 1 mΩ, measurement current: 100 μA
- 300 Ω Max. display: 310.00 Ω, resolution: 10 mΩ, measurement current: 10 μA
- 3 kΩ Max. display: 3.1000 kΩ, resolution: 100 mΩ, measurement current: 10 μA
- Basic accuracy: ±0.5% rdg ±10 dgt 3 mΩ range , ±0.5% rdg ±5 dgt 30 mΩ range or more
- Measurement frequency: 1 kHz ±0.2 Hz
- Measurement method: AC four-terminal method
- Voltage measurement ranges:
- 6 V Max. display: 6.00000 V, resolution: 10 μV
- 60 V Max. display: 60.0000 V, resolution: 100 μV
- 300 V Max. display: 300.000 V, resolution: 1 mV
- Basic accuracy: ±0.01% rdg. ±3 dgt.
- Response time: 10 ms
- Sampling period:
- Ω or V: 4 ms (EX.FAST), 12 ms (FAST), 35 ms (MEDIUM), 150 ms (SLOW)
- ΩV: 8 ms (EX.FAST), 24 ms (FAST), 70 ms (MEDIUM), 253 ms (SLOW)
- Functions:
- Contact check, Zero adjustment (±1000 counts), Pulse measurement, Comparator (Hi/ IN/ Lo), Statistical calculations (Max. 30,000), Delay, Average, Panel saving/loading, Memory storage, LabVIEW® driver
- Interfaces:
- LAN (TCP/IP, 10BASE-T/100BASE-TX)
- RS-232C (Max. 38.4 kbps, Available as printer I/F)
- EXT I/O (37-pin Handler interface)
- Analog output (DC 0 V to 3.1 V)
