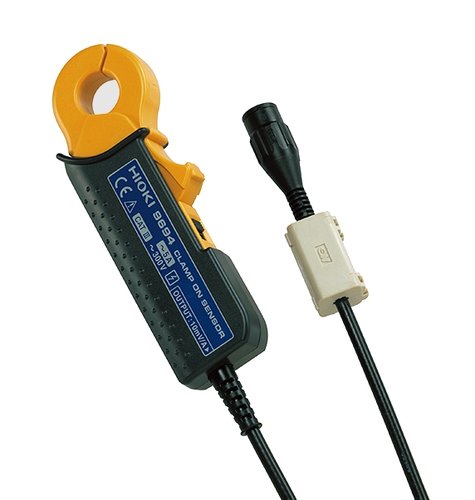

Hioki-9694 CLAMP ON SENSOR, 5 A AC, 15 mm core diameter, BNC

For measuring load current, voltage output sensor 5 A AC

Key Features and Functions

  • For inverter devices or commercial power lines
  • For measuring the secondary side of 5A CTs
  • Fits in narrow spaces due to compact design

Product Number:

Hioki-9694

Manufacturer:

Hioki

Quantity:

Total
Unit price
Base Product
Availability:
Call or email for delivery time

Hioki current sensors are best-in-class devices for use with power meters and PQAs. The 9694 is a 5A AC clamp sensor with voltage output for measuring load current.

Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year)

  • Rated measurement current: 5 A AC
  • Max. measurement current: Continuous 50 A (45 to 66 Hz)
  • Output rate: 10 mV AC/ A
  • Amplitude accuracy (45 to 66 Hz): ±0.3 % rdg. ±0.02 % f.s.
  • Phase accuracy: ±2° (45 Hz to 5 kHz)
  • Amplitude frequency characteristics: Within ±1% at 40 Hz - 5 kHz (deviation from amplitude accuracy)
  • Max. rated voltage to earth: 300 V AC rms or less
  • Measurable conductor diameter: φ 15 mm (0.59 in) or less
  • Operating temperature and humidity: 0°C to 50°C (32°F to 122°F), 80% RH or less (no condensation)
  • Dustproofness and waterproofness: N/A
  • Dimensions and mass: 46 mm (1.81 in)W × 135 mm (5.31 in)H × 21 mm (0.83 in)D, 230 g (8.1 oz)
  • Cord length 3 m (9.84 ft), Output terminal: BNC
