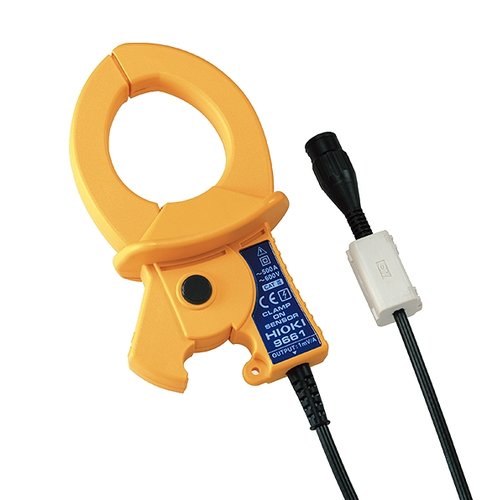

Hioki-9661 CLAMP ON SENSOR, 500 A AC, 46 mm core diameter, BNC
For measuring load current, voltage output sensor 100 A AC
Key Features and Functions
- For inverter devices or commercial power lines
- Measure up to 500 A
Availability:
Call or email for delivery time
Hioki current sensors are best-in-class devices for use with power meters and PQAs. The 9661 is a 500A AC clamp sensor with voltage output for measuring load current.
Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year)
- Rated measurement current: 500 A AC
- Max. measurement current: Continuous 550 A (45 to 66 Hz)
- Output rate: 1 mV AC/ A
- Amplitude accuracy (45 to 66 Hz): ±0.3% rdg. ±0.01% f.s.
- Phase accuracy: ±0.5° (45 Hz to 5 kHz)
- Amplitude frequency characteristics: Within ±1% at 40 Hz - 5 kHz (deviation from amplitude accuracy)
- Max. rated voltage to earth: 600 V AC rms or less
- Measurable conductor diameter: φ 46 mm (1.81 in) or less
- Operating temperature and humidity: 0°C to 50°C (32°F to 122°F), 80% RH or less (no condensation)
- Dustproofness and waterproofness: N/A
- Dimensions and mass: 78 mm (3.07 in)W × 152 mm (5.98 in)H × 42 mm (1.65 in)D, 380 g (13.4 oz)
- Cord length 3 m (9.84 ft), Output terminal: BNC
