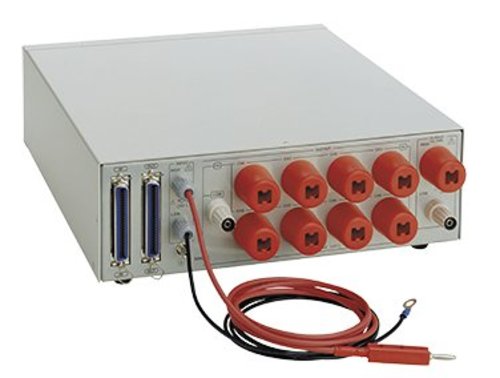

Hioki-3930 HIGH VOLTAGE SCANNER
5kV AC/DC High Voltage Scanner that Supports Automatic Multi-point Testing
Key Features and Functions
- Output of the input high voltage from a user-selected channel
- 8 ch per unit (single mode), with up to 32 ch (4 connected units)
- Isolated high-voltage I/O, control signal lines, and power supply
- Control using the 3153 program function or with a standard sequencer
Documents and Software:
Availability:
Call or email for delivery time
The Hioki 3930 is a passive auxiliary tester that is connected to and controlled by the Hioki 3153 automatic insulation/withstanding tester or a sequencer, and is designed to safely permit testing of multiple points with a minimum of connection changes.
Basic specifications
- Operation modes: Multi-mode: Scanning of user-selected points for high 4 ch / low 4 ch
- Single mode: Common scan of high 8 ch - common
- Rated voltage used: 5 kV AC / 5 kV DC
- Operation indications: Lamps light up when power is supplied and when a specified channel is operating
Relay area
- Max. open and closed voltage: 5000 V DC, 5000 V AC
- Max. open and closed current: 1.0 A (open and closed capacity: 50 W)
- Contact point indirect contact resistance: 500 mΩ or less, with 1 mA AC
- Contact point max. capacity: 50 W
