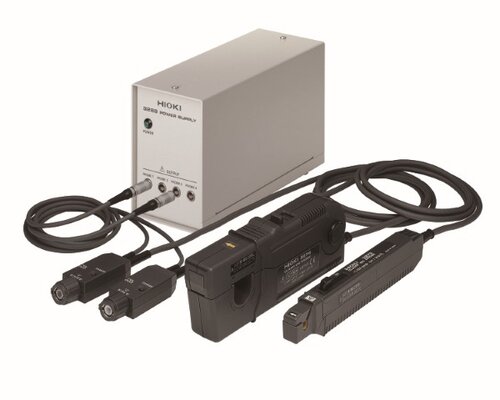

Hioki-3269 POWER SUPPLY, 4-channel
Power Supply Unit for Outputting Current Probe Signals to Memory HiCorders and Oscilloscopes
Key Features and Functions
- Power supply for the Clamp on probe 3273-50 - 3276, CT6700 and CT610 series
- Supplies power when connected to a general-purpose instrument such as a recorder
Availability:
Call or email for delivery time
Hioki flat bandwidth current probes are best-in-class current sensors for use with Memory HiCorders and high performance oscilloscopes. The 3269 is a 4 channel power supply for outputting signals measured by the 3270 Series AC/DC Clamp On Probe to the data acquisition equipment.
Basic specifications
- Compatible sensors: The CT6710, CT6711: up to 2 units
- The CT6700, CT6701, 3273-50, 3274, 3275 or 3276: up to 4 units
- Note: Also up to 4 units for the discontinued Model 3273
- Number of power supply connectors: 4
- Output: ±12 V ±0.5 V, ±2.5 A
- (sum total of all channels)
- Power supply: 100 V to 240 V AC (free) 50/60 Hz 170 VA max.
- Dimensions and mass: 80 mm (3.15 in)W × 119 mm (4.69 in)H × 200 mm (7.87 in)D, 1.1 kg (38.8 oz)
Description
Additional Informations
Reviews
Query on the Item
Do you have any questions on this item?
Description
Reviews
Query on the Item
Hioki flat bandwidth current probes are best-in-class current sensors for use with Memory HiCorders and high performance oscilloscopes. The 3269 is a 4 channel power supply for outputting signals measured by the 3270 Series AC/DC Clamp On Probe to the data acquisition equipment.
Basic specifications
- Compatible sensors: The CT6710, CT6711: up to 2 units
- The CT6700, CT6701, 3273-50, 3274, 3275 or 3276: up to 4 units
- Note: Also up to 4 units for the discontinued Model 3273
- Number of power supply connectors: 4
- Output: ±12 V ±0.5 V, ±2.5 A
- (sum total of all channels)
- Power supply: 100 V to 240 V AC (free) 50/60 Hz 170 VA max.
- Dimensions and mass: 80 mm (3.15 in)W × 119 mm (4.69 in)H × 200 mm (7.87 in)D, 1.1 kg (38.8 oz)
