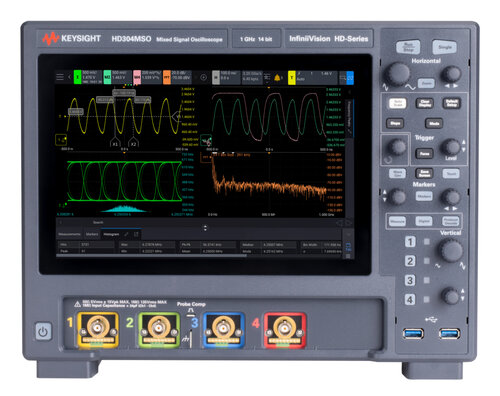

Keysight HD304MSO InfiniiVision HD3 Series Oscilloscopes (4 Channel, 200 MHz)
Key Features and Functions
The HD3 Series brings Keysight’s industry-leading capabilities from high-performance oscilloscopes to the high-volume level, making precision portable from 200 MHz to 1 GHz. Leveraging custom hardware technology from the UXR Series, the HD3 boasts impressive resolution with four times the vertical accuracy with a 14-bit ADC and half the noise floor. Paired with our fast, uncompromised waveform update rate and twenty-five times more memory, the HD3 Series can capture small signals with high vertical resolution.
- Increase vertical resolution by four times with a 14-bit analog-to-digital converter (ADC).
- See smaller signals with a 50 µVRMS noise floor.
- Find signal glitches with an uncompromised 1.3 M waveform / second update rate.
- Capture longer time spans at full sample rate with 100 Mpts of deep memory.
- Display up to four independent signals and control the scaling individually.
- Isolate signals in seconds with zone triggering — simply draw a box on the screen.
- Characterize signals, hunt for errors, and save automatically with Keysight Fault Hunter.
- Perform advanced analysis with fast Fourier transforms, histograms, and Bode plots.
Standard Feature:
- Frequency response analysis
- Fault Hunter
- Zone trigger
- Segmented memory
- MSO
- Mask testing
- Histograms
- FFT, and more
Documents and Software Solutions:
Meet the new generation of Keysight InfiniiVision oscilloscopes, the HD3 Series.
The HD3 was created with high-performance technology leveraged from our high-speed UXR Series oscilloscopes, now making precision available in a much more portable form factor.
With the all-new architecture of the HD3 (including a custom 14-bit ADC and low noise front end), you can analyze all signals in your design with high vertical accuracy. This ensures you make the most accurate measurements possible and have the most realistic view into the signals inside your device.
Part of this new architecture also includes deep memory with dedicated memory chips for every channel (100 Mpts). This means there is no interleaving between channels. You can have all four channels turned on and still get the maximum memory and sample rate on every channel.
The new custom ASIC (MegaZoom 5) enables the HD3 to have hardware-based functions such as zone trigger, serial decoding, and mask testing.
Custom hardware also makes it possible for us to create new custom software, such as the Fault Hunter software application. Simply run Fault Hunter and detect any glitches or errors on your signa.
See What You’ve Been Missing with Versatile Functionality
All models can be upgraded in bandwidth or memory using immediate license upgrades. There are no returns to factory required for any upgrades.
Meet the new generation of Keysight InfiniiVision oscilloscopes, the HD3 Series.
The HD3 was created with high-performance technology leveraged from our high-speed UXR Series oscilloscopes, now making precision available in a much more portable form factor.
With the all-new architecture of the HD3 (including a custom 14-bit ADC and low noise front end), you can analyze all signals in your design with high vertical accuracy. This ensures you make the most accurate measurements possible and have the most realistic view into the signals inside your device.
Part of this new architecture also includes deep memory with dedicated memory chips for every channel (100 Mpts). This means there is no interleaving between channels. You can have all four channels turned on and still get the maximum memory and sample rate on every channel.
The new custom ASIC (MegaZoom 5) enables the HD3 to have hardware-based functions such as zone trigger, serial decoding, and mask testing.
Custom hardware also makes it possible for us to create new custom software, such as the Fault Hunter software application. Simply run Fault Hunter and detect any glitches or errors on your signa.
See What You’ve Been Missing with Versatile Functionality
All models can be upgraded in bandwidth or memory using immediate license upgrades. There are no returns to factory required for any upgrades.
