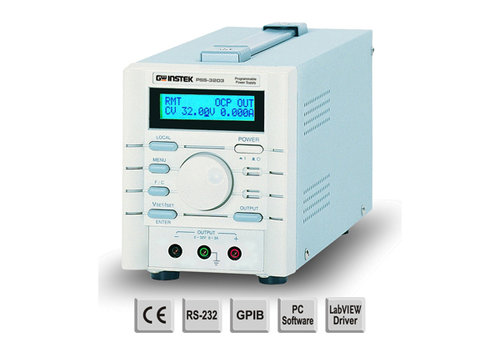

GW-INSTEK PSS-3203GP 96 W, 0-32 V , 0-3A, Programmable Linear D.C. Power Supply GPIB
Key Features and Functions
- Digitized Programmable Interface
- High Resolution 10mV, 1mA
- High Stability, Low Drift
- Over-Voltage, Over-Current, Over Temperature Protection
- Intelligent Fan Control (Changes by Output Power)
- Built-in Buzzer Alarm
- Labview Driver
- Standard Interface: RS-232C
- Optional Interface: GPIB (IEEE-488.2)
- Optional European Jack Type Terminal
Documents and Software Solutions:
The PSS-Series is single output, 96W or 100W, programmable linear DC power supplies. OVP, OCP, and OTP protect the PSS series and their loads from unexpected conditions. The LCD panel simultaneously displays output and other parameters; the regulated cooling fan ensures low noise for comfortable operation. RS232C and GPIB interfaces, SCPI command sets, and LABVIEW drivers make remote control and ATE software development easier. (Note: only either RS-232C or GPIB can be installed) The compact PSS series is suitable for any high resolution bench-top or rack mount application.
Channel Configuration:
| PSS-2005 | PSS-3203 |
|---|---|---|
Voltage | 0~20V | 0~32V |
Current | 0~5A | 0~3A |
OVP | 0~21V | 0~33V |
The PSS-Series is single output, 96W or 100W, programmable linear DC power supplies. OVP, OCP, and OTP protect the PSS series and their loads from unexpected conditions. The LCD panel simultaneously displays output and other parameters; the regulated cooling fan ensures low noise for comfortable operation. RS232C and GPIB interfaces, SCPI command sets, and LABVIEW drivers make remote control and ATE software development easier. (Note: only either RS-232C or GPIB can be installed) The compact PSS series is suitable for any high resolution bench-top or rack mount application.
Channel Configuration:
| PSS-2005 | PSS-3203 |
|---|---|---|
Voltage | 0~20V | 0~32V |
Current | 0~5A | 0~3A |
OVP | 0~21V | 0~33V |
