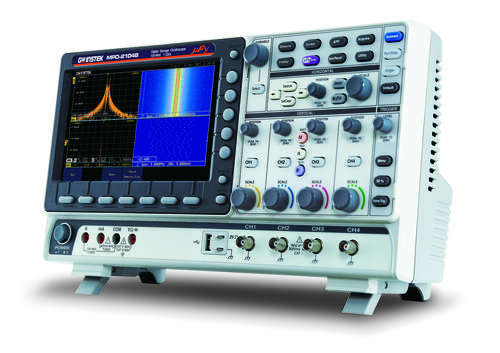

GW-INSTEK MPO-2104B 100 MHz, 4-channel, Multi-function Python Programmable Oscilloscope
Key Features and Functions
- MPO-2000P:200 MHz;4CH/2CH
- MPO-2000B:100 MHz;4CH/2CH
- Multifunction Instrument:
- Dual Channel Spectrum analyzer with Spectrogram
- Dual channel 25 MHz AWG
- Dual channel power supply (1 V to 20 V)
- DMM (Separate input – max 1000 V)
- Data log function
- Internal Python scripts for automation purpose
- Protocol Decode:
- I2C/SPI/UART/CAN/LIN serial bus trigger and decoding function
- P-Models: CAN FD, USB 2.0 (full speed), FlexRay, USB PD, I2S
- B-Models: CAN FD, USB 2.0 (full speed)
- Network storage function
- Interface and remote control:
- USB Host port: front panel, for storage device,
- Supports USB HID protocol, for keyboard, mouse and barcode scanner under Python script control
- Supports USB Host CDC-ACM protocol, which can control other GW Instek instruments under Python script control, such as PSW, PFR, PPX, PEL, GDM series.
- USB Device port: rear panel, for remote control (USBTMC protocol).
- Ethernet port.
Documents and Software Solutions:
The MPO-2000 series in addition to being an oscilloscope, also includes a spectrum analyzer, an arbitrary waveform generator, a digital multimeter and a DC power supply. GW-INSTEK introduced the Python script function into the MPO-2000, so that users can conduct program control of a small automated test system by setting up a single unit test or multi-unit test without a PC, hence, the name MPO.
The MPO-2000 series provides Basic and Professional versions (model suffixes are represented by B and P).In terms of bandwidth, the Basic version is 100 MHz and the Professional version is 200 MHz and the main difference is that the Professional version provides larger program memory and more system resources to achieve the ability to process longer waveform data. The B- model can be upgraded to the P-Model with the MP2-PRO upgrade kit.
The series provides USB CDC device control to meet the needs of multi-unit collaborative tests, and a Python GUI library is provided to allow users to modify the original built-in Python APP or write their own programs that present curve drawing and GUI operation menus to be packaged into Python programs developed by third parties.
The Basic version features the provided demo programs that can be executed (including programs with USB device control and GUI) and Python programs provided by third parties. In addition, the Professional version provides more diverse bus decoding functions, including FlexRay, USB-PD and I S. A large number of bus decoding functions are included in the standard configuration, and users do not have to pay to have the functions, making MPO-2000 more competitive.
The MPO-2000 series in addition to being an oscilloscope, also includes a spectrum analyzer, an arbitrary waveform generator, a digital multimeter and a DC power supply. GW-INSTEK introduced the Python script function into the MPO-2000, so that users can conduct program control of a small automated test system by setting up a single unit test or multi-unit test without a PC, hence, the name MPO.
The MPO-2000 series provides Basic and Professional versions (model suffixes are represented by B and P).In terms of bandwidth, the Basic version is 100 MHz and the Professional version is 200 MHz and the main difference is that the Professional version provides larger program memory and more system resources to achieve the ability to process longer waveform data. The B- model can be upgraded to the P-Model with the MP2-PRO upgrade kit.
The series provides USB CDC device control to meet the needs of multi-unit collaborative tests, and a Python GUI library is provided to allow users to modify the original built-in Python APP or write their own programs that present curve drawing and GUI operation menus to be packaged into Python programs developed by third parties.
The Basic version features the provided demo programs that can be executed (including programs with USB device control and GUI) and Python programs provided by third parties. In addition, the Professional version provides more diverse bus decoding functions, including FlexRay, USB-PD and I S. A large number of bus decoding functions are included in the standard configuration, and users do not have to pay to have the functions, making MPO-2000 more competitive.
