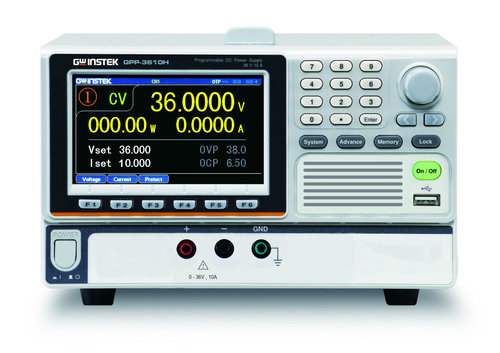

GW-INSTEK GPP-3610H Single Channel Precision DC Supply with Load function (36 V, 10 A, 360 W)
Key Features and Functions
- Output Mode: CV and CC
- DC Output: 36 V/10 A/360 W
- Load Mode: CV, CC and CR
- DC Load input: 36.5 V/ 10.2 A/ 100 W
- 4.3' TFT LCD Display
- Programming Resolution: 1 mV/0.2mA (GPP-3610H); 2mV/0.2mA (GPP-7250)
- Read back Resolution: 0.1 mV//0.1 mA
- Low Ripple Noise: <1mVrms/< 2 mArms
- Transient Response Time: <100 us
- Load Function (CC, CV, CR Mode)
- Utilizes Hardware to Realize Over Voltage Protection/Over Current Protection/Over Temperature Protection
- Delay Function/Output Monitoring Function/Output Recorder Function
- Supports Setting Value, Measurement Value and Output Waveform Display
- Sequential Output Function and 8 Built-in Template Waveforms
- The Output Recorder Function Records the Output Voltage & Current Parameters With a Minimum Recording Interval of 1 Second
- Sequence/Delay/Recorder/Panel Setting Conditions Respectively Provide 10 Sets of Internal Storage Memory
- Intelligent Temperature-controlled Fan Effectively Reduces Noise
- Standard Interface: LAN, RS-232, USB, Ext I/O
- Optional Interface (Manufacturer Installed Only): GPIB
Documents and Software Solutions:
GPP programmable DC power supply series incorporates two 360 W models.
The 36 V/10 A GPP-3610H and the 72V/5A GPP-7250. GPP-3610H provides high programming (1mV/0.2mA) and readback resolution.
GPP-3610H:
- Programming Resolution: (0.1mV/0.2mA)
- Readback Resolution: (0.1mV/0.2mA)
GPP-7250:
- Programming Resolution: (0.2mV/0.1mA)
- Readback Resolution: (0.2mV/0.1mA)
They both provides very low ripple:
CV Mode: ≤2 mVrms in frequency range (5Hz-1MHz)
CC Mode: ≤ 2mArms
GPP-3610H and GPP-7250 provide a variety of display modes, including channel setting values, measurement values, and waveform display. Using the output monitoring function of the GPP-Series, users can set monitoring conditions according to their needs, generate an alarm or stop output during the measurement process, stop the measurement and protect the customer's DUT. The GPP series provides an output recorder function, the voltage/current of the output process can be recorded in the internal memory, and the results can be saved as (*.REC) or (*.CSV) file and transferred to a USB. The saved *.CSV can be later exported into Excel for analysis.
GPP-3610H and GPP-7250 are designed with a load function of up to 100 W. The GPP-3610H provides 36V/10A power output and has built-in maximum 36.5 V constant voltage load (CV), maximum 10.2A constant current load (CC) and maximum 1 kOhm constant resistance load (CR) functions. GPP -7250 provides 72V/5A power output and has built-in maximum 72.5 V constant voltage load (CV), maximum 5.2A constant current load (CC) and maximum 1 kOhm constant resistance load (CR) functions
GPP programmable DC power supply series incorporates two 360 W models.
The 36 V/10 A GPP-3610H and the 72V/5A GPP-7250. GPP-3610H provides high programming (1mV/0.2mA) and readback resolution.
GPP-3610H:
- Programming Resolution: (0.1mV/0.2mA)
- Readback Resolution: (0.1mV/0.2mA)
GPP-7250:
- Programming Resolution: (0.2mV/0.1mA)
- Readback Resolution: (0.2mV/0.1mA)
They both provides very low ripple:
CV Mode: ≤2 mVrms in frequency range (5Hz-1MHz)
CC Mode: ≤ 2mArms
GPP-3610H and GPP-7250 provide a variety of display modes, including channel setting values, measurement values, and waveform display. Using the output monitoring function of the GPP-Series, users can set monitoring conditions according to their needs, generate an alarm or stop output during the measurement process, stop the measurement and protect the customer's DUT. The GPP series provides an output recorder function, the voltage/current of the output process can be recorded in the internal memory, and the results can be saved as (*.REC) or (*.CSV) file and transferred to a USB. The saved *.CSV can be later exported into Excel for analysis.
GPP-3610H and GPP-7250 are designed with a load function of up to 100 W. The GPP-3610H provides 36V/10A power output and has built-in maximum 36.5 V constant voltage load (CV), maximum 10.2A constant current load (CC) and maximum 1 kOhm constant resistance load (CR) functions. GPP -7250 provides 72V/5A power output and has built-in maximum 72.5 V constant voltage load (CV), maximum 5.2A constant current load (CC) and maximum 1 kOhm constant resistance load (CR) functions
