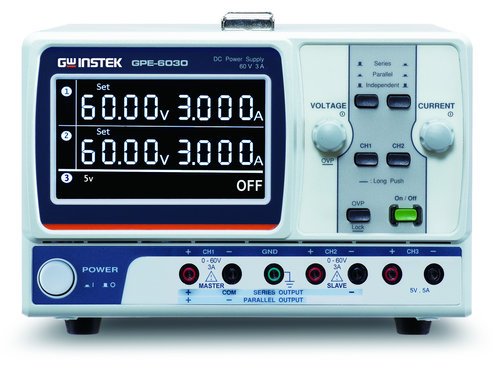

GW-INSTEK GPE-6030 Triple-Channel DC Power Supply
Key Features and Functions
- 3 independent isolated output channels
- CH1/CH2: 0 ~ 60V / 0 ~ 3A output; CH3 supports 5.0V at 5A
- Series/parallel tracking function
- High program resolution of 10mV/1mA and measurement resolution of 30mV/10mA
- Output On/Off function
- Simple analog control interface
- Multiple protection features such as overvoltage and overload protection functions
Documents and Software Solutions:
The GPE-3060/6030 are high-resolution linear DC power supplies. Their primary aim is to replace the existing GPC-3060D/ 6030D models. The GPE-3060/6030 deliver 385 watts of output power and feature three independent isolated output channels.
The GPE-3060 offers CH1/CH2 outputs of 0 to 30V and 0 to 6A, while the GPE-6030 supports CH1/CH2 outputs of 0 to 60V and 0 to 3A. Both models feature CH3 outputs of 5.0V at 5A.
With respect to high program resolution, GPE-3060 provides 10mV/2mA and GPE-6030 offers 20mV/1mA. GPE-3060/6030 adopts a new hybrid power supply design, which can save 13% of power consumption compared with the wattage of the conventional linear power supplies, and the volume and weight are significantly reduced. Please see the comparison table below for details:
In addition to the independent output between each channel, GPE-3060/6030 can perform series/parallel automatic connection tracking function. Through the parallel or series function, the output of the power supply can be controlled at 30V/12A (parallel) (GPE-3060) or 120V/3A (series) (GPE-6030) and this function can be used on CH1/CH2.
