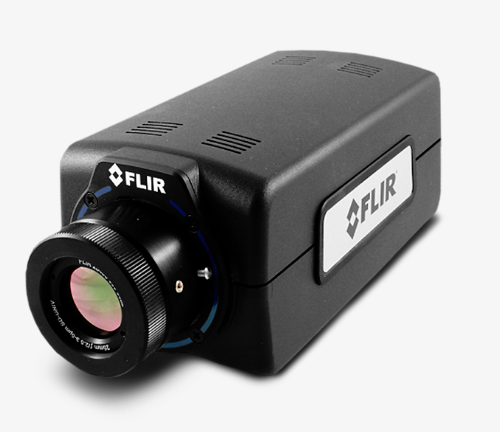

FLIR A6750sc MWIR InSB Cooled Camera
Key Features:
- FLIR built cryo cooler
- Detector Type: FLIR Indium Antimonide (InSb)
- Excellent image quality: 640 x 512 pixels
- High sensitivity: <20 mK
- High speed image acquisition: up to 4.1 kHz in windowing mode
- Synchronization with other instruments and events
- Wide choice of optics & extender rings
Imaging and electronics:
- Spectral Range: 3 – 5 μm or 1 - 5 μm
- Resolution: 640 × 512
- Detector Pitch: 15 μm
- Well Capacity: 7.2 M electrons
- Operability: >99.8% ( >99.95% typical)
- Sensor Cooling: FLIR Closed Cycle Rotary
- Readout Modes: Asynchronous Integrate While Read; Asynchronous Integrate Then Read
- Synchronization Modes: Sync In, Sync Out, Trigger In
- Integration Time: 480 ns to 687 sec
- Frame Rate (Full Window): Programmable 0.0015Hz to 125Hz
- Subwindow Modes: User Defined Size, Centered in Image
- Max Frame Rate (@ Full Window) 4175Hz (16 x 4)
- Dynamic Range 14-bit
Optics:
- f/#: 2.5 to 4.0
- Available Lenses
- 3-5μm: 13mm, 13mm (low distortion), 25mm, 50mm, 100mm (all lenses are f/2.5)
- 1-5μm: 25mm, 50mm, 100mm (lenses are f/2.5)
- Microscopes: 1x (this lens is f/4 and requires an f/4 camera)
- Focus: Manual
- Filtering: Removable Behind the Lens or Permanent “cold” Filter Available
Measurements:
- Standard Temperature Range -20°C to 350°C (-4°F to 662°F)
- Optional Temperature Range Up to 1,500°C (2,732°F) Up to 2,000°C (3,632°F)
- Accuracy ± 2°C or ±2% of reading
- NETD: <20 mK (18 mk typical)
Other:
- Digital Data Prototcol: Gigabit Ethernet (GigE Vision 2.0)
- Analog Video: NTSC, PAL
- Camera Control: GenICam and RS-232
HIGH SENSITIVITY, CRISP THERMAL IMAGES
FLIR A6750sc incorporates a cooled FLIR Indium Antimonide (InSb) detector that operates in the 3- to 5-micron waveband. Optionally, a broadband version that operates in the 1-5 micron waveband is available. Both versions produce crisp thermal images of 640 x 512. Achieving a high thermal sensitivity of <20 mK, FLIR A6700sc is able to capture the finest image details.
FAST INTEGRATION TIMES
Working in snapshot mode, the FLIR A6750sc is able to capture all pixels from a scene simultaneously in under 190μs for room temperature scenes. This is particularly important when monitoring fast moving objects where an uncooled thermal imaging camera would suffer from image blur. The camera supports image frame rates up to 4.1k frames per second when operating in windowing mode.
CUSTOM COLD FILTERS AVAILABLE
Custom cold filtering options for specific spectral detection and measurement are available. Perfect for imaging through glass, measuring temperature of thin film plastics, laser profiling and detection, or optical gas imaging
SOFTWARE
FLIR A6750sc camera works seamlessly with FLIR Research Studio Software enabling intuitive viewing, recording and advanced processing of the thermal data provided by the camera. A Software Developers Kit (SDK) is optionally available.
HIGH SENSITIVITY, CRISP THERMAL IMAGES
FLIR A6750sc incorporates a cooled FLIR Indium Antimonide (InSb) detector that operates in the 3- to 5-micron waveband. Optionally, a broadband version that operates in the 1-5 micron waveband is available. Both versions produce crisp thermal images of 640 x 512. Achieving a high thermal sensitivity of <20 mK, FLIR A6700sc is able to capture the finest image details.
FAST INTEGRATION TIMES
Working in snapshot mode, the FLIR A6750sc is able to capture all pixels from a scene simultaneously in under 190μs for room temperature scenes. This is particularly important when monitoring fast moving objects where an uncooled thermal imaging camera would suffer from image blur. The camera supports image frame rates up to 4.1k frames per second when operating in windowing mode.
CUSTOM COLD FILTERS AVAILABLE
Custom cold filtering options for specific spectral detection and measurement are available. Perfect for imaging through glass, measuring temperature of thin film plastics, laser profiling and detection, or optical gas imaging
SOFTWARE
FLIR A6750sc camera works seamlessly with FLIR Research Studio Software enabling intuitive viewing, recording and advanced processing of the thermal data provided by the camera. A Software Developers Kit (SDK) is optionally available.
