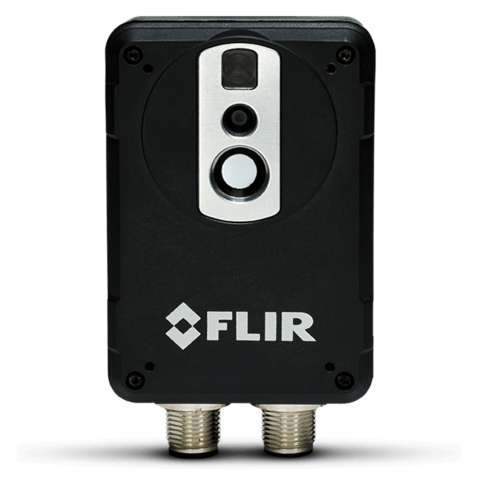

FLIR AX8 Thermal Camera For Continuous Condition and Safety Monitoring 48°, 640 × 480/9 Hz

FLIR AX8 combines thermal imaging with a visual cameras in one small, affordable package for continuous temperature monitoring and alarming. The AX8 helps you guard against unplanned outages, service interruptions, and failure of electrical or mechanical equipment. Compact and easy to install, the AX8 provides continuous monitoring of electrical cabinets, process and manufacturing areas, data centers, energy generation and distribution, transportation and mass transit, storage facilities and refrigeration warehouses.

Key Features:

• Compact design - fits easily into tight spaces such as electrical cabinets
• Infrared resolution of 80 x 60 pixels
• Thermal sensitivity of <0.10°C + 30°C (+86°F) / 100mK
• 48 x 37° field of view
• Built-in digital camera with resolution of 640 x 480 pixels
• MSX technology - actively blends together thermal and visual images to enhance detail
• Temperature measurement range of -10 to +150°C (14 to 302°F)
• Measurement analysis functions - 6 spotmeters, 6 area boxes, automatic hot/cold detection and measurement presets
• Alarm functions - automatic alarms on any selected measurement function (max of 5 alarms)
• Ethernet control and image streaming

Documents and Software Solutions:

• FLIR-Research Studio Streaming, Recording, and Analysis Software
