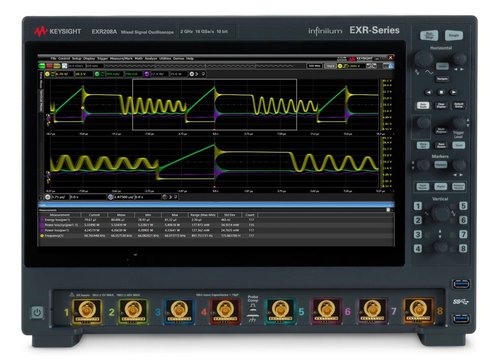

Keysight EXR408A Infiniium EXR-Series Real-Time Oscilloscope, 4 GHz, 16 GSa/s, 8 Ch
Key Features
- Capture a longer signal trace with 16 GSa/s maximum sample rate and 100 Mpts/channel of standard memory, upgradeable to 400 Mpts
- Get superior signal integrity with system ENOB of 8.1 bits and 10-bit analog-to-digital converter (ADC)
- Gain increased usability with the multi-touch supported 15 inch capacitive touch screen and standard solid state drive for fast boot and high reliability
- Access a wide range of protocol, compliance, and analysis software
Key Specifications:
- Bandwidth: 4 GHz (upgradeable)
- Analog Channels: 8
- Digital Channels: 16, dedicated input (Optional)
- Bandwidth Upgrades: Available
- Max Memory Depth: 400 Mpts/ch
- Max Sample Rate: 16 GSa/s
- Waveform Update Rate: >200,000 wfm/s
- ADC Bits: 10, up to 16 with high-res
- Built-In Instruments (Optional):
- Logic Analyzer
- Protocol Analyzer
- DVM
- Counter
- Bode Plotter
- Waveform Generator
- Operating System: Windows 10
Documents and Software Solutions:
Meet the Infiniium EXR-Series
Welcome to your all-new Infiniium EXR-Series. With eight models ranging in performance from 500 MHz to 6 GHz, 4 or 8 analog channels, and dozens of hardware and software options, your Infiniium EXRSeries is powerful, easy to own, and intuitive to use.
See More with World-Class Signal Integrity
Each model incorporates a 10-bit ADC with a sample rate of 16 GSa/s available on all channels simultaneously. A high-resolution ADC’s usefulness is dependent on the low-noise front end that supports the additional quantization levels. Our low noise front end includes custom ICs, like the 130 nm BiCMOS IC that incorporates user-selectable analog filters and bandwidth upgrades via a software license. This gives you:
- Four times more vertical resolution than 8-bit oscilloscopes
- Up to 16 bits with high-res mode
- As low as 43 µV of noise, 9.0 bits system ENOB with hardware filtering
See More Information with History Mode and Segmented Memory
Your Infiniium EXR-Series comes standard with two useful tools that allow you to look forward and backward in time. With history mode, simply stop the oscilloscope at any time to review up to 1,024 previous trigger events. With segmented memory, you can capture up to 5,205 events post-trigger for analysis, with no limit between events. If your design has an elusive event that only seems to happen when you’re not around, these tools can help you arm the oscilloscope to look for it, then let you review what gets captured at your leisure. And with a full HD screen of 1920x1080 pixels, and support for a second, independent external monitor, that data can be organized and displayed however is best for you.
Meet the Infiniium EXR-Series
Welcome to your all-new Infiniium EXR-Series. With eight models ranging in performance from 500 MHz to 6 GHz, 4 or 8 analog channels, and dozens of hardware and software options, your Infiniium EXRSeries is powerful, easy to own, and intuitive to use.
See More with World-Class Signal Integrity
Each model incorporates a 10-bit ADC with a sample rate of 16 GSa/s available on all channels simultaneously. A high-resolution ADC’s usefulness is dependent on the low-noise front end that supports the additional quantization levels. Our low noise front end includes custom ICs, like the 130 nm BiCMOS IC that incorporates user-selectable analog filters and bandwidth upgrades via a software license. This gives you:
- Four times more vertical resolution than 8-bit oscilloscopes
- Up to 16 bits with high-res mode
- As low as 43 µV of noise, 9.0 bits system ENOB with hardware filtering
See More Information with History Mode and Segmented Memory
Your Infiniium EXR-Series comes standard with two useful tools that allow you to look forward and backward in time. With history mode, simply stop the oscilloscope at any time to review up to 1,024 previous trigger events. With segmented memory, you can capture up to 5,205 events post-trigger for analysis, with no limit between events. If your design has an elusive event that only seems to happen when you’re not around, these tools can help you arm the oscilloscope to look for it, then let you review what gets captured at your leisure. And with a full HD screen of 1920x1080 pixels, and support for a second, independent external monitor, that data can be organized and displayed however is best for you.
