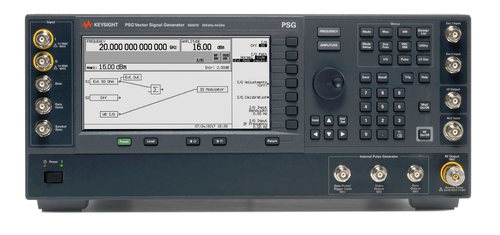

Keysight E8267D PSG vector signal generator
Key Features
- Test advanced receivers with realistic wideband radar, EW and Satcom waveforms with metrology-grade performance and versatile capabilities
- Simulate complex electromagnetic environments with up to 4 GHz of bandwidth
- Reduce the time you spend creating complex signals with Signal Studio software: pulse building, noise power ratio (NPR), multi-tone signals, wireless & more
- Master your most complex signal requirements with the industry’s best SSB phase noise: 143 dBc/Hz at 1 GHz (10 kHz offset)
Key performance data
- Frequency range (min. to max.): 100 kHz to 44 GHz
- Frequency switching (list mode): 9 ms
- Sweep mode: Step, list
- Output power (at 20 GHz): –130 to +22 dBm
- Level accuracy (at 20 GHz): ± 0.8 dB
- SSB phase noise (at 10 GHz; 10 kHz offset): –126 dBc/Hz
- Harmonics (at 10 GHz): -55 dBc
- Non-harmonics (at 1 GHz): –88 dBc
- AM rate: DC to 100 kHz
- FM deviation (maximum): 1 to 128 MHz
- PM phase deviation (maximum in normal mode): 1 to 800 rad
- Narrow pulse width: 20 ns
Additional Documents and Software:
Generate Trusted Performance
When you describe the demands on your newest programs, the urgency is clear—that’s what keeps Keysight Technologies, Inc. innovating in microwave signal generators. Our foundation is the PSG, with its metrology-grade performance and versatile capabilities. Complementing the PSG, the MXG and EXG offer alternatives in size, speed, and cost.
As you pursue mission success, Keysight can help you generate trusted performance. Our microwave signal generators are an essential part of today’s most advanced measurement systems. They reliably provide the signal purity, output power, and modulation you need to keep pushing the envelope.
- Drive advanced designs forward with the high output power and extremely low phase noise of the E8267D and E8257D PSG
- Get the right mix of speed, performance, and size with the pure and precise N5183B MXG
- Balance performance needs and budget realities with the cost-effective N5173B EXG
- Lower your cost-of-ownership with signal generators that deliver proven reliability and support for cost-effective calibration, service, and repair
