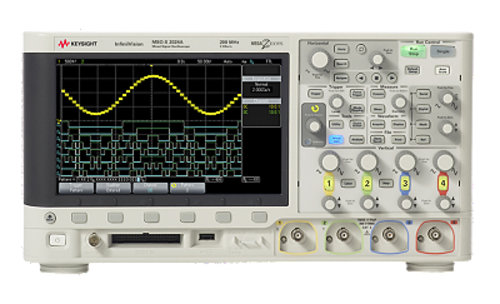

Keysight DSOX2PLUS InfiniiVision 2000 X-Series Enhancement Package
Key Features & Specifications
- Waveform update rate increases from 50,000 wfm/s to over 200,000 wfm/s.
- Memory increase from 100 kpts/ch to 1 Mpts/ch (replaces DSOX2MEMUP)
- Adds Segmented memory, 250 segments (replaces DSOX2SGM)
- Adds rise/fall time trigger, setup/hold time trigger
- Adds the following waveform math functions: Ax + B, Square, Absolute, Common Logarithm, Natural Logarithm, Exponential Base 10, Exponential, Low-pass Filter, High-pass Filter, Measurement Trend, Magnify, Chart Logic Bus Timing, Chart Logic Bus State (equivalent to DSOX3ADVMATH)
Notes: – DSOX2PLUS is not included in DSOX2APPBNDL and should be purchased separately. –
DSOX2PLUS antiquates the need for DSOX2MEMUP and DSOX2SGM.
If you wish to upgrade a unit to have DSOX2MEMUP or DSOX2SGM, purchase DSOX2PLUS instead.
System requirements:
– Any 2000 X-Series purchased on or before March 4th, 2018
– Oscilloscope firmware 2.43 or greater (can be loaded free from keysight.com)
