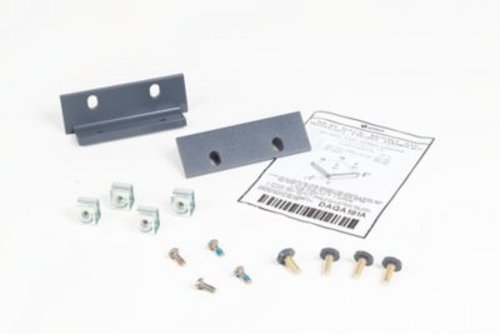

Keysight DAQA191A (1CM107A) Rack mount flange kit, 88.1 mmH (2U) - two flange brackets
4-5 days from Keysight Inventory
The Keysight DAQA191A dual rackmount flange kit secures the instrument to the front of the System II cabinet. This kit can be used with the DAQA194A Dual Lock Link Kit to mount two Keysight System II (half-width, 2U height - 88.1mm) instruments side-by-side.
The Keysight DAQA191A is compatible with the Keysight DAQ970A, 34970A, and 34972A data acquisition systems, the Keysight 34460A, 34461A, 34465A, 34470A, and 34420A DMMs.
Kits - New Phantom Gray Color (Black)
| Instrument Height | Front Handle Kit (A) | Rackmount Flange Kit (B) | Rackmount Flange Kit (B) Includes 4 x hole plugs | Flange Kit with Handles (C) | Flange Kit for Previously Supplied Handles (D) |
|---|---|---|---|---|---|
| 88.1 mm (2U) | 1CN106A | 1CM107A or DAQA191A | 1CM110A | 1CM111A | 1CM122A |
| 132.6 mm (3U) | 1CN107A | 1CM104A | NA | 1CP108A | 1CM104A |
| 177.0 mm (4U) | 1CN103A | 1CM113A | 1CM114A | 1CP105A | 1CM127A |
| 221.5 mm (5U) | 1CN105A | 1CM115A | NA | 1CP120A | 1CM143A |
| 265.9 mm (6U) | 1CN120A | 1CM142A | NA | 1CP119A | 1CM136A |
| 310.4 mm (7U) | NA | 1CM133A | NA | 1CP122A | 1CM138A |
The Keysight DAQA191A dual rackmount flange kit secures the instrument to the front of the System II cabinet. This kit can be used with the DAQA194A Dual Lock Link Kit to mount two Keysight System II (half-width, 2U height - 88.1mm) instruments side-by-side.
The Keysight DAQA191A is compatible with the Keysight DAQ970A, 34970A, and 34972A data acquisition systems, the Keysight 34460A, 34461A, 34465A, 34470A, and 34420A DMMs.
Kits - New Phantom Gray Color (Black)
| Instrument Height | Front Handle Kit (A) | Rackmount Flange Kit (B) | Rackmount Flange Kit (B) Includes 4 x hole plugs | Flange Kit with Handles (C) | Flange Kit for Previously Supplied Handles (D) |
|---|---|---|---|---|---|
| 88.1 mm (2U) | 1CN106A | 1CM107A or DAQA191A | 1CM110A | 1CM111A | 1CM122A |
| 132.6 mm (3U) | 1CN107A | 1CM104A | NA | 1CP108A | 1CM104A |
| 177.0 mm (4U) | 1CN103A | 1CM113A | 1CM114A | 1CP105A | 1CM127A |
| 221.5 mm (5U) | 1CN105A | 1CM115A | NA | 1CP120A | 1CM143A |
| 265.9 mm (6U) | 1CN120A | 1CM142A | NA | 1CP119A | 1CM136A |
| 310.4 mm (7U) | NA | 1CM133A | NA | 1CP122A | 1CM138A |
