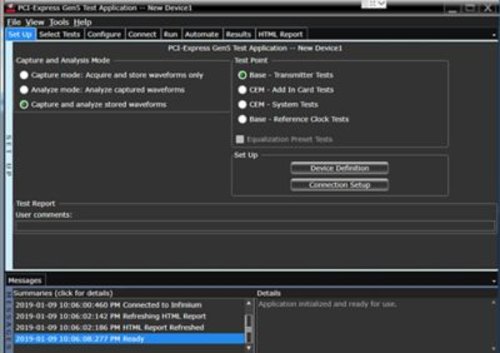

Keysight D9050PCIC PCI Express5 Tx Compliance Software
- PCI Express TX analysis of PCIe 5.0 Signals at speeds up to 32 GT/s
- Uncorrelated Jitter, Preset Testing, Uncorrelated PWJ and more
- Configurable pass/fail margin reporting
- HTML Summary Report
Use the PCIe 5.0 Tx compliance software to test, debug and characterize your PCIe Gen5 designs quickly and easily. It automatically configures the oscilloscope for each test and generates an informative HTML report upon test completion. The application compares the results with the specification test limit and includes margin analysis which indicates how closely the device passes or fails each test. With the option InfiniiSim Waveform Transformation Toolset, the software supports integrated de-embedding of the breakout channel of the test fixture.
