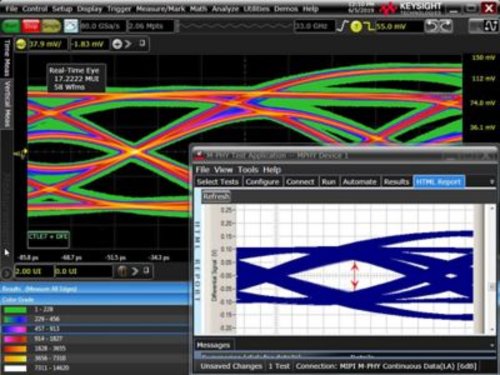

Keysight D9040MPHC MIPI M-PHY Tx Compliance Software
Features
- Tests the complete specification for MIPI M-PHY v4.1 and below section 5 and M-PHY CTS v4.1 and below section 1
- Tests PWM and HS tests for all possible speeds
- Automated oscilloscope measurement setup, testing and reporting for increased accuracy, time-savings and repeatability
- Automated margin analysis
Requirements
- Infiniium oscilloscope with firmware 6.40.00801 or greater
- D9020JITA EZJIT Complete – Jitter and Vertical Noise Analysis Software
- D9020ASIA Advanced Signal Integrity Software (EQ, InfiniiSim Adv, Crosstalk)
The MIPI M-PHY compliance test software for Infiniium oscilloscopes gives you a fast, easy way to validate and debug your M-PHY data links. The M-PHY electrical test software allows you to automatically execute MIPI M-PHY conformance tests for your NAND flash memory or Application processor. The application automatically displays the results in a flexible report format. In addition to measurement data, the report provides margin analysis that shows how closely your product passed or failed each test.
The MIPI M-PHY compliance test software for Infiniium oscilloscopes gives you a fast, easy way to validate and debug your M-PHY data links. The M-PHY electrical test software allows you to automatically execute MIPI M-PHY conformance tests for your NAND flash memory or Application processor. The application automatically displays the results in a flexible report format. In addition to measurement data, the report provides margin analysis that shows how closely your product passed or failed each test.
