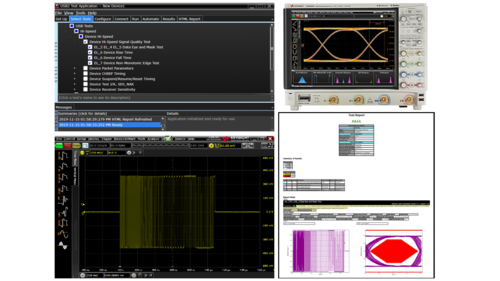

Keysight D9010USBC USB 2.0 Compliance Test Software
Key Features
- Setup wizard for quick setup, configuration and test selection
- Comprehensive High Speed, Full Speed and Low Speed Signal tests
- USB V-Bus Inrush and Current tests
- USB V-Bus Droop, Drop and Backdrive Voltage tests
- Incorporates USB-IF USBET Electrical Test Tool
- Automated scope measurement setup
- Test results report generation
- Pass/fail margin analysis
- Test framework that reports multi trial results with full array of statistics for each measurement with worst case measurement result
Automation:
- Test setup wizard guides you through test selection, configuration, connection, execution, and results reporting
- Measurement connection setups are displayed
- Oscilloscope setup is automatically configured for each test
- Test results report documents test configuration, measurements made, pass/fail status, margin analysis, and waveforms
Standards Supported:
- USB-IF recognized for use in USB 2.0 compliance testing
- MATLAB scripts used are from the USB-IF organization
Requirements:
- E2649B for a complete set of six high-speed test fixtures and power supply
- E2646A Signal Quality inrush Droop/Drop (SQiDD) for low/full speed testing
The D9010USBC USB 2.0 Compliance test software makes USB signal integrity testing as simple as capturing the signals with your oscilloscope; eliminating the need to transfer scope waveforms to a PC.
The D9010USBC USB compliance test software for Infiniiumoscilloscopes gives you a fast and reliable way to verify USB electrical specification compliance for your USB 2.0 devices, hosts and hubs. The software executes the official USB-IF software, USBET20 embedded in the oscilloscope.
Easy-to-use interface for fast setup, configuration and automated test Recognized by the USB-IF for USB compliance testing – Award-winning Infiniium ease of use – Test fixtures for USB 1.1 (low- and full-speed), USB 2.0 (high-speed)
With USB compliance test software, you can take the Infiniium oscilloscope you use for everyday debugging and use it to verify USB electrical parameters with the same testing scripts the USB-IF created for official compliance testing at designated workshops. The USB compliance test software has a new setup wizard that allows you to quickly and easily test all facets of electrical compliance of your device, host or hub.
The D9010USBC USB compliance test software for Infiniiumoscilloscopes gives you a fast and reliable way to verify USB electrical specification compliance for your USB 2.0 devices, hosts and hubs. The software executes the official USB-IF software, USBET20 embedded in the oscilloscope.
Easy-to-use interface for fast setup, configuration and automated test Recognized by the USB-IF for USB compliance testing – Award-winning Infiniium ease of use – Test fixtures for USB 1.1 (low- and full-speed), USB 2.0 (high-speed)
With USB compliance test software, you can take the Infiniium oscilloscope you use for everyday debugging and use it to verify USB electrical parameters with the same testing scripts the USB-IF created for official compliance testing at designated workshops. The USB compliance test software has a new setup wizard that allows you to quickly and easily test all facets of electrical compliance of your device, host or hub.
