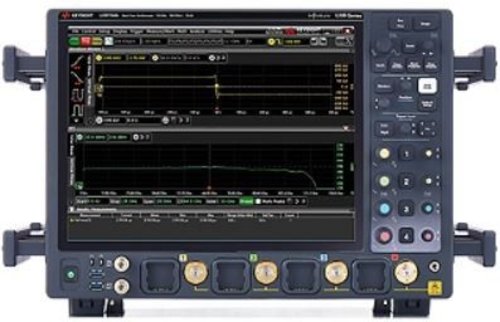

Keysight D9010EAPC Ethernet 10GBASE-KR Tx Compliance Software
Comprehensive measurement and debug solution
- The D9010EAPC 10GBASE-KR Backplane Ethernet electrical compliance application software provides rapid and automated testing of Backplane Ethernet network devices.
- The application automates compliance test coverage for tests in the Backplane Ethernet IEEE 802.3ap specification.
- A wide range of 10GBASE-KR Backplane Ethernet electrical tests are performed.
Flexible and extensible
- Automated setup ensures result repeatability and let’s test engineers run the application without being an expert on Backplane Ethernet testing procedures.
- Test setup wizard guides user through test selection, configuration, connection, execution and results reporting.
- Oscilloscope setup is automatically configured for each test, and measurement connection setups are displayed.
- Test results reports test configuration, measurements made, pass/fail status, margin analysis and waveforms.
Compatibility
- Z-Series and UXR real-time oscilloscopes
The D9010EAPC 10GBASE-KR Backplane Ethernet electrical performance validation and compliance software for Infiniium Series oscilloscopes gives you a fast and easy way to verify and debug your 10GBASE-KR and 40GBASE-KR4 Ethernet designs. The Ethernet electrical test software lets you automatically execute Ethernet physical-layer (PHY) electrical tests and displays the results in a flexible report format. In addition to the measurement data, the report provides a margin analysis that shows how closely your device passed or failed each test.
The 10GBASE-KR electrical performance validation and compliance software performs a wide range of electrical tests to meet the 10GBASE-KR electrical specifications as documented in the IEEE 802.3ap standard. The software requires at least one InfiniiMax active differential probe (N2802A or N2803A) with N2836A InfiniiMax III 26 GHz solder-in probe head.
The D9010EAPC 10GBASE-KR Backplane Ethernet electrical performance validation and compliance software runs on all Infiniium Z-Series and UXR oscilloscopes.
The D9010EAPC 10GBASE-KR Backplane Ethernet electrical performance validation and compliance software for Infiniium Series oscilloscopes gives you a fast and easy way to verify and debug your 10GBASE-KR and 40GBASE-KR4 Ethernet designs. The Ethernet electrical test software lets you automatically execute Ethernet physical-layer (PHY) electrical tests and displays the results in a flexible report format. In addition to the measurement data, the report provides a margin analysis that shows how closely your device passed or failed each test.
The 10GBASE-KR electrical performance validation and compliance software performs a wide range of electrical tests to meet the 10GBASE-KR electrical specifications as documented in the IEEE 802.3ap standard. The software requires at least one InfiniiMax active differential probe (N2802A or N2803A) with N2836A InfiniiMax III 26 GHz solder-in probe head.
The D9010EAPC 10GBASE-KR Backplane Ethernet electrical performance validation and compliance software runs on all Infiniium Z-Series and UXR oscilloscopes.
