Keysight D90103CKC IEEE 802.3ck Compliance Test Application
Key Features
Comprehensive measurement and debug solution
- Characterizes 100/200/400 Gb/s TX designs defined by IEEE802.3ck
- Performs nearly 140 tests
- Key measurement includes 120 edge Output Jitter (Jnu, JRMS, EOJ), SNDR & Eye-opening (EH, EW, VEC)
Flexible and extensible
- Operates on an a UXR oscilloscope
- Automatic HTML report generation
- Test all or selected parameters to compliance limits or custom limits
The Keysight D90103CKC TX test application can be used with the UXR High-Bandwidth oscilloscopes to quickly and accurately perform electrical (physical layer) conformance measurements in accordance to:
- IEEE 802.3ck 100Gb/s, 200 Gb/s and 400 Gb/s Operation
- 100GAUI-1, 200GAUI-2 and 400GAUI-4 Chip-to-Chip (C2C) TX characteristics
- 100GAUI-1, 200GAUI-2 and 400GAUI-4 Chip-to-Module (C2M) host/module output characteristics
- Transmitter characteristics, 100GBASE-CR1, 200GBASE-CR-2, and 400GBASE-CR4
- Transmitter characteristics, 100GBASE-KR1, 200GBASE-KR-2, and 400GBASE-KR4
The D90103CKC application simplifies complex 106Gbps IEEE transmitter physical layer measurements:
- Performs automated adaptive Reference Receiver auto-tune operations.
- Saves time in understanding details of standards
- Reduces the time it takes to characterize your PAM4 design from hours to minutes
- Helps debug your device using custom configurations
- Allows you to quickly generate HTML reports that summarize the performance of your device
Key measurements include:
- Jitter Measurements including Jnu, JRMS, and EOJ on “12-edges” of a PRBS13Q
- Output Waveform measurements including Steady-State Voltage (Vf), Linear Fit Pulse Peak and Signal-to-Noise-and-Distortion (SNDR)
- Transition Time
- Eye Width, Eye Height & Vertical Eye Closure
- Effective Return Loss
For a comprehensive and up-to-date list of specific tests covered by the application, download and install the D90103CKC free time trial onto a UXR instrument. No license (or hardware) is required to run the software application in “Demo Mode”.
IEEE 802.3ck Infiniium Conformance Application—At a Glance
The Keysight D90103CKC IEEE 802.3ck Conformance Application is an Ethernet test solution that covers the electrical timing parameters for PAM4 specification (IEEE 802.3ck).
The main features of the IEEE 802.3ck Infiniium Conformance Application are:
- Complete coverage of specification-based chip-to-chip (C2C) and chip-to-module (C2M) tests
- Data Analytics
The IEEE 802.3ck Infiniium Conformance Application:
- Lets you select individual or multiple tests to run.
- Lets you identify the device being tested and its configuration.
- Shows you how to make oscilloscope connections to the device under test.
- Automatically checks for proper oscilloscope configuration.
- Automatically sets up the oscilloscope for each test.
- Allows you to determine the number of trials for each test.
- Provides detailed information of each test that has been run. The result of maximum 25 worst trials can be displayed at any one time.

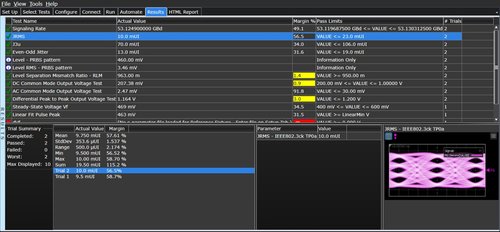

- Creates a printable HTML report of the tests that have been run. This report includes pass/fail limits, margin analysis, and screen shots
