Keysight D1200AUTA Decodes and analysis for CAN, LIN protocols
This function is now standard on new instruments.
- The fastest throughput oscilloscope solution in its class for triggering on and analyzing CAN/LIN serial buses using hardware-based architecture
- CAN eye-diagram mask testing (standard)

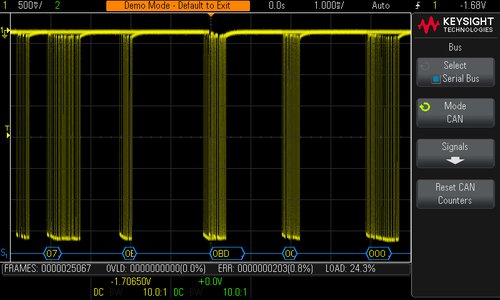

- On-screen serial decode time-correlated with the serial data waveform
Compatible with DSOX1204A or DSOX1204G
The automotive serial triggering and analysis (CAN, LIN) option for InfiniiVision 1000 X-Series oscilloscopes allows you to trigger on either standard or extended CAN message IDs, including the message ID of a remote transfer request frame. It supports triggering on a data frame and allows you to specify message IDs, data and data length for filtering messages of interest. Triggering on active error frames also is supported. In addition, it supports triggering on LIN frame IDs and data, and it includes color-coded parity and check sums errors. You can easily isolate serial packets to find error sources due to hardware or software related problems.
This measurement application option works with InfiniiVision 1000 X-Series DSOX1204A and DSOX1204G models.
The automotive serial triggering and analysis (CAN, LIN) option for InfiniiVision 1000 X-Series oscilloscopes allows you to trigger on either standard or extended CAN message IDs, including the message ID of a remote transfer request frame. It supports triggering on a data frame and allows you to specify message IDs, data and data length for filtering messages of interest. Triggering on active error frames also is supported. In addition, it supports triggering on LIN frame IDs and data, and it includes color-coded parity and check sums errors. You can easily isolate serial packets to find error sources due to hardware or software related problems.
This measurement application option works with InfiniiVision 1000 X-Series DSOX1204A and DSOX1204G models.
