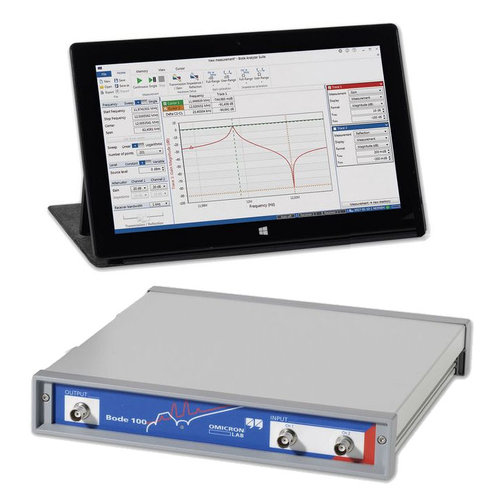

Omicron Bode 100 Basic Vector Network Analyzer (No Adapters or Coaxial Cables included)
Key Benefits of Bode 100
- VNA & FRA in one device
- Easy-to-use and intuitive software (Bode Analyzer Suite)
- Easy data processing and data sharing
- Highly accurate measurements
- Calibration & repair service from manufacturer
- Lightweight and portable hardware design without active cooling (silent lab)
- Automation Interface (API) for automated measurements
- Unbeatable price-performance ratio
- High customer satisfaction
Applications
- Stability of control circuits such as DC/DC converters in power supplies
- Parasitics of passive components and circuit boards
- Power-plane impedance for optimum decoupling
- Reflection coefficient and return loss of filters, antennas or amplifiers
- Ultrasonic and piezo electric devices
- Resonance behavior of high Q-circuits like oscillating crystals
- Resonance frequency and Q-factor of RFID and NFC tags and antennas
- Complex gain of active and passive circuits
- Complex impedance and admittance of active and passive devices
- Swept S-parameters of electronic circuits and filters
- Group delay characteristics
Key Features and Function
- Wide frequency range from 1 Hz to 50 MHz
- Adjustable output level from -30 dBm to 13 dBm
- Adjustable shaped level (variable signal level) over frequency
- Switchable channel input impedance (50 Ω / 1 MΩ)
- Highly sensitive inputs (superheterodyne receiver with 24 bit ADCs)
- Narrow-band receivers for highest noise rejection
- Flexible hardware design offering several measurement modes
- Fanless and therefore absolutely silent on your bench
- Coaxial Cables and Adapters are not included. See below for product with accessories.
