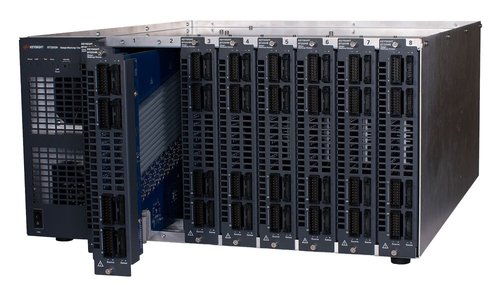

Keysight BT2202A Charge-Discharge Chassis - 400VAC 3-Phase
Key Features and Specifications
Chassis
- 400 or 480 VAC 3-phase input power
- Holds up to eight BT2204B or BT2205A modules
Channel rating per module
- BT2204B 32 channels with 6 V, ±6.25 A, 27.34 W
- BT2205A 2 channels with 6 V, ±100 A, 437.5 W
Create unique sequences
- Combine charge, discharge, pre-charge, rest state, or a DC internal resistance (DCIR) measurement steps into a test sequence.
Monitor test conditions
- Monitor voltage, Current, Power, Amp*Hours, Watt*Hours, ΔV/Δt, ΔI/Δt, ΔV, ΔI during steps.
Safety and cell protection
- Probe-check assures good connections to your cells. Customize or use predefined limits to stop charge and discharging.
More Information:
Highlights
The Keysight BT2202A is an 8-slot mainframe for 400 VAC 3-phase power. It is part of the BT2200 Series cell formation cycler and formation solution.
The BT2200 charge-discharge platform is cost-effective and easily configurable for Li-Ion cell formation and lifetime cell cycling. Modular configurations support cells requiring maximum currents ranging from ± 6 A to ± 800 A, with up to 256 cells or channels per chassis.
