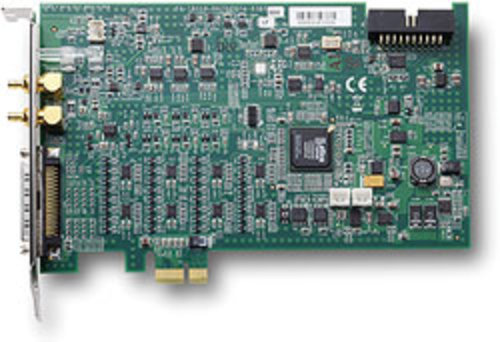

ADLINK PCIe-7350 50MHz, 32-CH high-speed PCIe DIO card
Key Features
- Maximum 50 MHz clock rate from internal timer or 100 MHz from external clock
- 200 MB/s maximum throughout
- Software selectable voltage level of 1.8 V, 2.5 V, and 3.3 V
- Per group (8-bit) input/output direction selectable
- Support I ² C and SPI programmable serial interfaces for external device communication
- Support Vsync & Hsync trigger for parallel digital image capture
- 8-channel auxiliary programmable I/O
- x1 lane PCI Express® Interface
ADLINK's PCIe-7350 is the advanced version of hot-selling PCI/PCIe-7300A featuring high-speed digital I/O with 32-channel bi-direction parallel I/O lines. The data rate can achieve up to 200 MB/s through the x1 PCI ExpressR interface. The clock rate can support up to 50 MHz internal clock or 100 MHz external clock, which is ideal for the applications of high-speed and large-scale digital data acquisition or exchange, such as digital image capture, video playback and IC testing.
