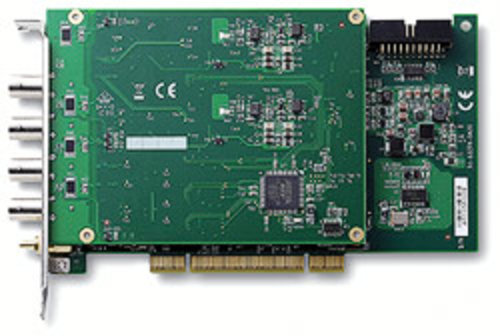

ADLINK PCI-9527L 2-CH 24-Bit 216 kS/s High Resolution Dynamic Signal Acquisition & Generation for PCI bus
Key Features
- 24-Bit Sigma-Delta ADC and DAC
- 2-CH simultaneous sampling analog input, and 2-CH simultaneous updated analog output
- Supports IEPE output on each analog input, software-configurable
- 216 kS/s maximum sampling rate with software programmable rate
- Programmable input range: ±40 V, ±10 V, ±3.16 V, ±1 V, ±0.316 V
- Programmable output range: ±10 V, ±1 V, ±0.1 V
- AC or DC input coupling, software selectable
- Trigger I/O connector for external digital trigger signal
The PCI-9527L is a high-performance, 2-CH analog input and 2-CH analog output dynamic signal acquisition board. This board is specifically designed for audio testing, acoustic measurement, and vibration analysis applications.
The ADLINK PCI-9527L features two 24-bit simultaneous sampling analog input channels. The 24-bit sigma-delta ADC provides a sampling rate up to 216 KS/s at high resolutions, making it ideal for higher bandwidth dynamic signal measurements. The sampling rate can be adjusted by setting the onboard DDS clock source to an appropriate frequency. All channels are sampled simultaneously and accept an input range from ±40 V to ±0.316 V. The PCI-9527L analog input supports software selectable AC or DC coupling and 4 mA bias current for integrated electronic piezoelectric (IEPE) sensors.
The ADLINK PCI-9527L also has two channels of 24-bit resolution, high fidelity analog output. The outputs occur simultaneously at software programmable rates up to 216 KS/s. A software programmable output range of ±0.1 V, ±1 V, and ±10 V is available on the output channels.
The PCI-9527L is a high-performance, 2-CH analog input and 2-CH analog output dynamic signal acquisition board. This board is specifically designed for audio testing, acoustic measurement, and vibration analysis applications.
The ADLINK PCI-9527L features two 24-bit simultaneous sampling analog input channels. The 24-bit sigma-delta ADC provides a sampling rate up to 216 KS/s at high resolutions, making it ideal for higher bandwidth dynamic signal measurements. The sampling rate can be adjusted by setting the onboard DDS clock source to an appropriate frequency. All channels are sampled simultaneously and accept an input range from ±40 V to ±0.316 V. The PCI-9527L analog input supports software selectable AC or DC coupling and 4 mA bias current for integrated electronic piezoelectric (IEPE) sensors.
The ADLINK PCI-9527L also has two channels of 24-bit resolution, high fidelity analog output. The outputs occur simultaneously at software programmable rates up to 216 KS/s. A software programmable output range of ±0.1 V, ±1 V, and ±10 V is available on the output channels.
