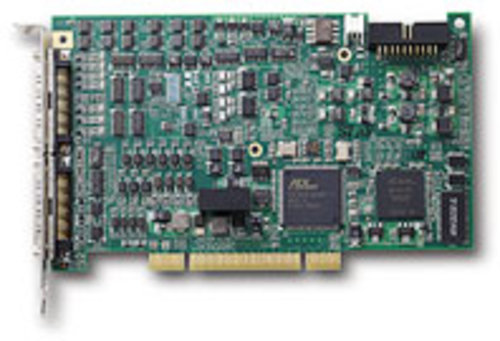

ADLINK PCI-9524 8-CH, 24-bit multifunction DAQ for load cell/LVDT
Key Features
- 4-CH strain gauged-based transducer inputs
- Up to 30kS/s sampling rate
- Transducer input accuracy up to 1/200,000 counts at full-scale
- 4-CH 24-bit general-purpose analog input
- 3-CH PWM output, supporting single pulse and pulse train
- 3-CH encoder inputs, supporting CW/CCW & AB phase
- 2-CH 16-bit analog outputs
- Auto-calibration feature
The PCI-9524 is a robust, multi-purpose module designed for turnkey material test systems (MTS). Equipped with four strain gauge-based transducer input channels, four general purpose analog input channels, and a 3-axis motion controller, the PCI-9524 delivers a complete hardware solution for MTS manufacturers. The PCI-9524 easily integrates physical quantity measurement and implements strategy of close-loop control in a single module package. For transducer measurement, the PCI-9524 supports sensitivity from 1.0 mV/V to 4.0 mV/V and provides a 1/200000 accuracy of measurement of full scale. These features make the PCI-9524 suitable for precise measurement in large-scale transducers.
The PCI-9524 is a robust, multi-purpose module designed for turnkey material test systems (MTS). Equipped with four strain gauge-based transducer input channels, four general purpose analog input channels, and a 3-axis motion controller, the PCI-9524 delivers a complete hardware solution for MTS manufacturers. The PCI-9524 easily integrates physical quantity measurement and implements strategy of close-loop control in a single module package. For transducer measurement, the PCI-9524 supports sensitivity from 1.0 mV/V to 4.0 mV/V and provides a 1/200000 accuracy of measurement of full scale. These features make the PCI-9524 suitable for precise measurement in large-scale transducers.
