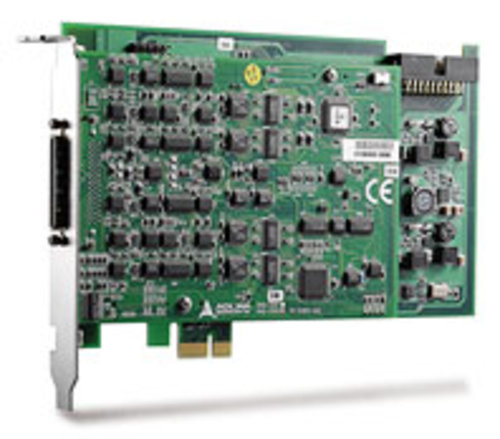

ADLINK DAQe-2502 8-CH 1MS/s 12-bit Simultaneous D/A Card (PCIe version)
Key Features
- x1 lane PCI Express® Interface
- Hardware-based arbitrary waveform generation
- Onboard 8 k-sample D/A FIFO (DAQe-2501); Onboard 16 k-sample D/A FIFO (DAQe-2502)
- Programmable bipolar or unipolar analog output ranges on per channel basis
- Programmable internal or external reference sources on per channel basis
- 8-CH 400 kS/s 14-bit single-ended analog inputs (DAQe-2501); 4-CH 400 kS/s 14-bit single-ended analog inputs (DAQe-2502)
- 24-CH TTL digital input/output
- 2-CH 16-bit general-purpose timer/counter
ADLINK DAQe-2500 series are high-speed and high-performance analog output multi-function DAQ PCI EXpress cards. The devices are able to update up to 8-CH, 12-bit analog outputs simultaneously at sustaining 1 MS/s. The reference sources and the output polarities are programmable on per channel basis, combining with the multiplying DAC architecture, ADLINK DAQe-2500 series DAQ cards can generate complex modulated analog signals. The hardware-based arbitrary waveform generation frees the CPU intervention even when all analog outputs are updating at full speed, and the lengths of waveforms are only limited by the system memory.
