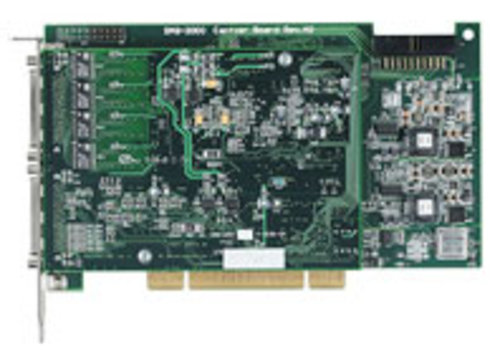

ADLINK DAQ-2206 64CH 250KS/s high speed Multi-function card
Key Features
- On-board 1 K-sample A/D FIFO
- 16-bit A/D resolution (DAQ-2205 & DAQ-2206)
- 12-bit A/D resolution (DAQ-2204)
- Up to 3 MS/s sampling rate (DAQ-2204)
- Supports a 32-bit 3.3 V or 5 V PCI bus
- 64-CH single-ended or 32-CH differential analog inputs
- Programmable gains: x1, x2, x4, x5, x8, x10, x20, x40, x50, x200 (DAQ-2204), and x1, x2, x4, x8 (DAQ-2205 & DAQ-2206)
- Bipolar or unipolar analog input ranges
ADLINIK DAQ-2204, DAQ-2205, and DAQ-2206 are high-density and high-performance multifunction DAQ cards. The devices can sample up to 64 AI channels with different gain settings and scan sequences. It makes them ideal for dealing with high-density analog signals with various input ranges and sampling speeds. These devices also offer differential mode for 32 AI channels in order to achieve maximum noise elimination The DAQ-2200 series also feature analog and digital triggering, 2-CH 12-bit analog outputs with waveform generation capability, 24-CH programmable digital I/O lines, and 2-CH 16-bit general-purpose timer/counters.
ADLINIK DAQ-2204, DAQ-2205, and DAQ-2206 are high-density and high-performance multifunction DAQ cards. The devices can sample up to 64 AI channels with different gain settings and scan sequences. It makes them ideal for dealing with high-density analog signals with various input ranges and sampling speeds. These devices also offer differential mode for 32 AI channels in order to achieve maximum noise elimination The DAQ-2200 series also feature analog and digital triggering, 2-CH 12-bit analog outputs with waveform generation capability, 24-CH programmable digital I/O lines, and 2-CH 16-bit general-purpose timer/counters.
