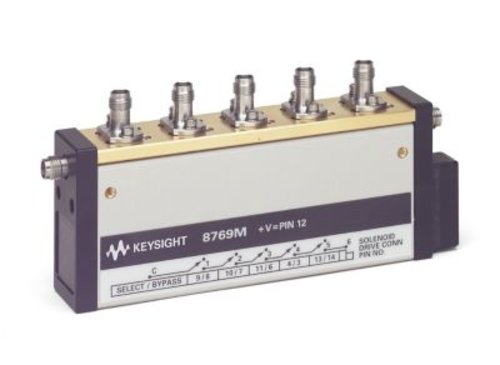

Keysight 8769M Coaxial switch, single-pole, six-throw, DC-50 GHz
- DC to 50 GHz
- Single-pole, six-throw
- 2.4 mm (f), 2.4 mm (f) standard (Option 101)
- 2.4 mm (f), 2.4 mm (m) (Option 100)
- 5, 15, 24 volt solenoids supply voltage (Option 011, 015, 024 respectively)
- Commercial calibration certificate with test data also available (Option UK6)
- Excellent repeatability: < 0.03 dB typical
- Low insertion loss: < 3.4 dB at 50 GHz
Availability:
Call or email for delivery time
Keysight now offers a family of higher frequency switches for your communcations and aerospace applications. Combining low SWR with long life and excellent repeatability, these switches safeguard your test platform from failures, recalibration, downtime, and lost production.
The Keysight 8769M is a single-pole, six-throw electromechanical switch.
Description
Additional Informations
Reviews
Query on the Item
Do you have any questions on this item?
Description
Reviews
Query on the Item
Keysight now offers a family of higher frequency switches for your communcations and aerospace applications. Combining low SWR with long life and excellent repeatability, these switches safeguard your test platform from failures, recalibration, downtime, and lost production.
The Keysight 8769M is a single-pole, six-throw electromechanical switch.
