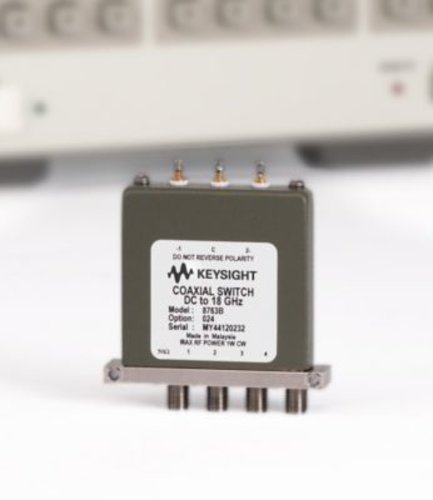

Keysight 8763B Switch, Coaxial, 4 Port, DC-18 GHz, SMA(female) connectors
Type
- Multiport coaxial switch with four RF ports, one with 50-ohm termination
Superior RF performance
- Insertion loss: < 0.20 dB to 2 GHz, < 0.5 dB to 18 GHz
- SWR (through line): < 1.1 to 2 GHz, < 1.2 to 12.4 GHz, < 1.3 to 18 GHz
- Isolation: > 90 dB to 18 GHz
Excellent RF repeatability & long life span
- Guaranteed performance up to 1 million cycles
Features
The Keysight 8763B offers excellent electrical and mechanical performance with broadband operation, high isolation, low SWR, long life, and exceptional repeatability.
Buy only the performance you need! Keysight offers a new line of latching coaxial switches that combine legendary reliability with the widest range of performance options available today. Learn more at: N1811TL Coaxial Switch
The Keysight 8763B offers excellent electrical and mechanical performance with broadband operation, high isolation, low SWR, long life, and exceptional repeatability.
Buy only the performance you need! Keysight offers a new line of latching coaxial switches that combine legendary reliability with the widest range of performance options available today. Learn more at: N1811TL Coaxial Switch
