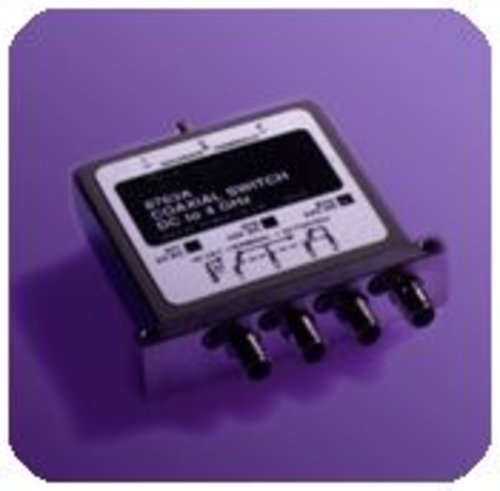

Keysight 8763A Switch, coaxial, DC-4 GHz; 4-Port
Type
- Multiport coaxial switch with four RF ports, one with 50-ohm termination
Superior RF performance
- Insertion loss: < 0.20 dB to 2 GHz, < 0.25 dB to 4 GHz
- SWR (through line): < 1.1 to 2 GHz, < 1.2 to 4 GHz
- Isolation: > 100 dB to 4 GHz
Excellent RF repeatability & long life span
- High repeatability: < 0.03 dB typical
- Guaranteed performance up to 1 million cycles
Features
- Current interrupts and position indication capability
- Optional TTL/5V CMOS
The Keysight 8763A offers excellent electrical and mechanical performance with broadband operation, high isolation, low SWR, long life, and exceptional repeatability.
Buy only the performance you need! Keysight offers a new line of latching coaxial switches that combine legendary reliability with the widest range of performance options available today. Learn more at: N1811TL Coaxial Switch
