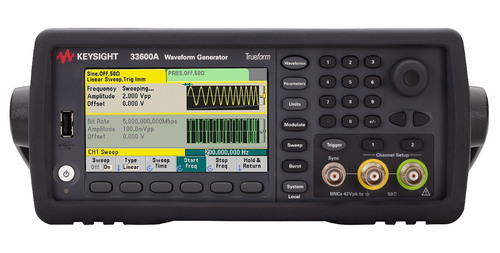

Keysight 33622A 33600A Series Waveform generator, 120 MHz, 2-channel
- Unmatched capabilities for generating a full range of signals for your most demanding measurements
- Sine waves with 5x lower harmonic distortion for more pure signals
- Pulses up to 100 MHz with
- Trueform arbitrary waveforms with sequencing for more accurate representation of user-defined signals
Instrument features
- 1 GSa/s sampling rate for higher time resolution arbitrary waveforms
- 14-bit resolution with 1 mVpp to 10 Vpp amplitude for greater amplitude accuracy
- 4 MSa/channel standard waveform memory, optional 64 MSa/channel for your longest waveforms
- USB, LAN (LXI-Core), GPIB optional for quick and easy connectivity to PC or network
- BenchVue Enabled. Control your waveform generator from your PC easily.
Waveform creation and editing
- A BenchVue software license (BV0002B) is now included with your instrument. BenchVue makes it simple to connect, control instruments, and automate test sequences
- Create a waveform from the front panel using the built-in editor
- Capture a waveform from an o scilloscope and download it directly to the generator
- Create a waveform in MATLAB, Microsoft Excel, etc. and download it to the generator
4-5 days from Keysight Inventory
Keysight 33600A Series waveform generators with exclusive Trueform signal generation technology offer more capability, fidelity and flexibility than previous generation DDS generators. Easily generate the full range of signals you need to your devices with confidence the signal generator is outputting the signals you expect.
Overcome your signal generation test challenges with Trueform Technology: View test challenge examples
The 33622A can be easily upgraded as your needs change.
NOTE: 1-channel generators cannot be upgraded to 2-channel generators.
