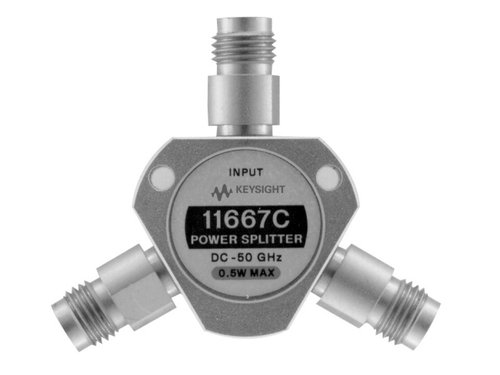

Keysight 11667C DC - 50 GHz power splitter, 50 ohm
Key Features
Superior RF Performance
- Frequency range: dc to 50 GHz
- Equivalent output SWR: 1.65
- Maximum input power: 0.5 W
- Insertion loss: 8.5 dB
- Tracking between two ports: 0.40dB
The Keysight 11667C power splitter is recommended when making wideband ratio measurements using a Keysight 8757 scalar network analyzer. This two-resistor type power splitter provides excellent output SWR at the auxiliary arm when used for source leveling or ratio measurement applications. The tracking between output arms over a frequency range from dc to 50 GHz allows wideband measurements to be made with a minimum of uncertainty.
