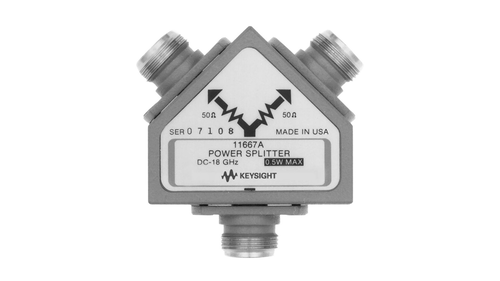

Keysight 11667A DC-18 GHz power splitter, Type-N, 50 ohm
Key Features
Superior RF performance
- Equivalent output SWR: 1.33
- Maximum input power: 0.5 W
- Insertion loss: 7 dB
- Tracking between any two ports: 0.20 dB to 8 GHz
The Keysight 11667A power splitter is recommended when making wideband ratio measurements using a Keysight 8757 scalar network analyzer. This two-resistor type power splitter provides excellent output SWR at the auxilliary arm when used for source leveling or ratio measurement applications. The tracking between output arms over a frequency range from dc to 18 GHz allows wideband measurements to be made with a minimum of uncertainty.
